Meech

905 Power Unit 5kV 50Hz

Part Number: 905-50

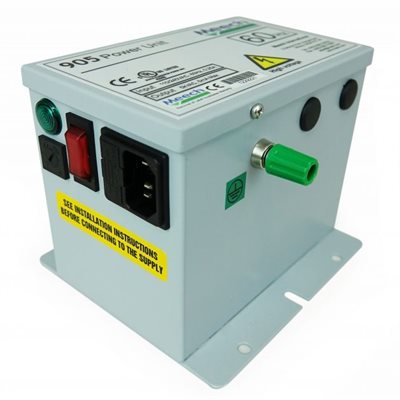

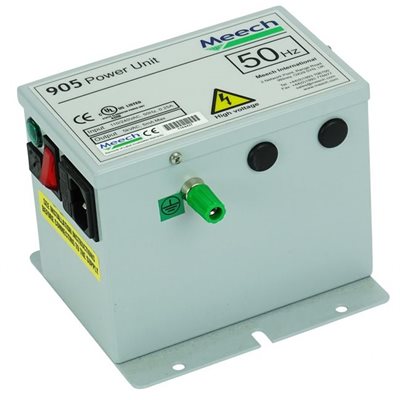

The Meech Model 905 is a constant voltage AC power supply, designed to provide a 5kV source for Meech AC ionizing blowers. It is adjustable to operate at 100-120v or 200-240v input voltages and is available in either 50Hz or 60Hz versions to suit local conditions. The 905 utilizes a modified shape of output wave form for powerful static neutralization and is uniquely designed to allow automated manufacture for increased reliability and extended product life.

 Technical Information
Weight: 7.5 lbs.
Input Voltage: 110 or 240V AC
Input Frequency: 50 Hz
Dimensions: 150mm x 130mm x 113mm
Output Current: < 5 mA
Maximum Load: 12 meters of ionizing appliances and cable
Output: 5kV
Power Consumption: 140W
$650.00 /EACH
List price: $650.00 /EACH
    • EACH
  • Availability: Available to Order
