- Habasit Flexproof Finger Cutter 40mm (10 x 120mm fingers)
Habasit Flexproof Finger Cutter 40mm (10 x 120mm fingers)
Part Number: AF-42
Habasit's AF-42 is a belt die-cutting tool for Flexproof finger geometry.
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Cuts finger sizes of 10mm x 120mm
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Compatible with belting up to 4mm in thickness
![Checkmark Icon](https://updateltdcom-1.azureedge.net/img/product/description/CheckMark-Icon.png?fv=57A72CD2862873EECDD118C621665682)
Cutting head has two blades and pin positioning, ensuring maximum accuracy
List price: $2,695.00 /EACH
- Availability: Available to Order

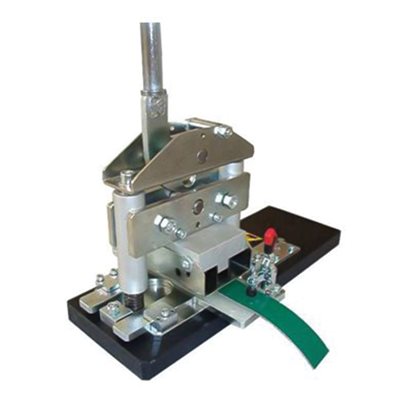

The AF-42/0 is a preparation device for 10/120 Flexproof finger geometry, specifically designed for HabaDRIVE power transmission belts up to 40 mm in width. The belt is securely clamped on a movable carriage, which is positioned in 10 mm increments (finger pitch) under a die-cutting head. This head, equipped with two knife blades, is actuated by an eccentric lever that provides sufficient force to cut even the strongest belt fabrics with ease. The fingers are cut step by step, ensuring precise geometry and optimal tensile strength for the resulting joint.
Habasit # H088000149
Specifications
Technical Data | |
---|---|
Belt Joint Type: | Flexproof |
Belt/Tape Max Width: | 40mm (1.57 in) |
Belt/Tape Max Thickness: | 4mm (0.14 in) |
Weight: | 8 kg (17.6 lb) |
Dimensions (mm): | 445 x 230 x 260mm |
Dimensions (in.): | 17.52" x 9.05" x 10.24" |
