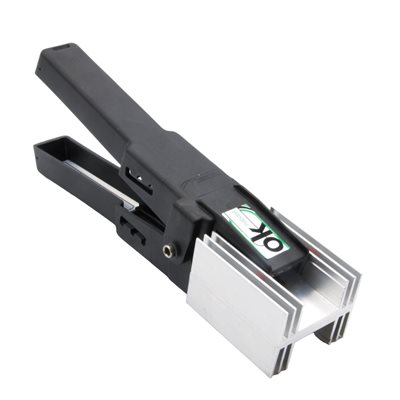

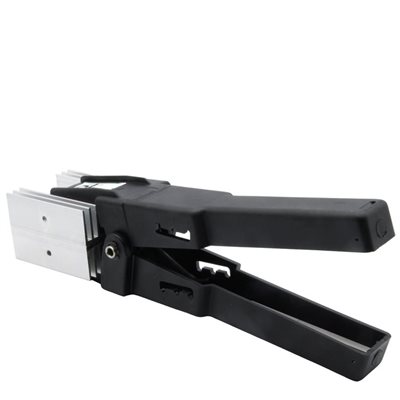

Habasit Flexproof & Quickmelt Cooling Tongs 60mm (80mm Fingers)
Part Number: CD-60
Habasit's CD-60 is a cooling tong for Quickmelt & Flexproof belt joining.
Compatible with belting up to 60mm wide x 5mm thick
Fits Flexproof finger sizes up to 80mm in length
Equipped with cooling fins to disperse heat efficiently
$338.60 /EACH
List price: $338.60 /EACH
List price: $338.60 /EACH
- Availability: In stock

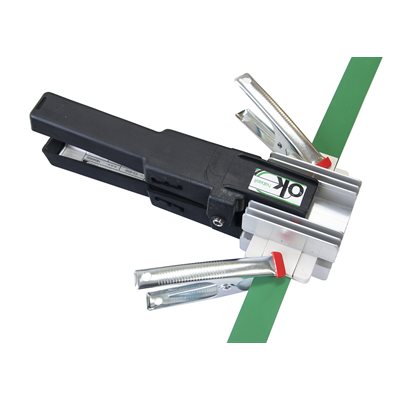

The CD-60 is a cooling tong for use in Quickmelt and Flexproof (80 mm finger) belt joining systems. The belt is joined in a guide rail fixed with two spring clips, and welded in a hot pressing device. After welding, the belt and guide rail is transferred to the CD-60 cooling tong to cool the belt down under spring-loaded pressure.
Habasit # H080690030
Specifications
| Technical Data | |
|---|---|
| Belt Joint Type: | Quickmelt or Flexproof |
| Belt/Tape Max Width: | 60mm (2 in) |
| Belt/Tape Max Thickness: | 5mm (0.18 in) |
| Weight: | 0.50 kg (1.10 lbs) |
| Dimensions (mm): | 270 x 60 x 100mm |
| Dimensions (in.): | 10.63" x 2.36" x 3.94" |
