Habasit PF-100S Flexproof Hot Press 100mm
Part Number: PF-100S
Habasit's PF-100S is a flat belt fabricating heat press for Flexproof joining.
Join belts up to 100mm wide x 3mm thick
Exchange belts in minutes either on or off the machine
Working temperature of 190°C (374°F)
$1,386.75 /EACH
List price: $1,386.75 /EACH
List price: $1,386.75 /EACH
- Availability: Available to Order

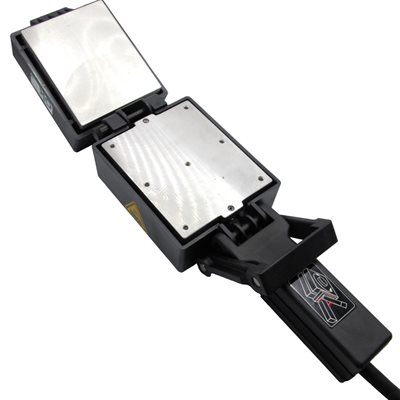

The PF-100S is a hot-pressing device for Flexproof joining of Habasit belts and tapes. The lower press plate is heated and is equipped with an integrated overheating fuse and temperature regulator. It's knuckle joint mechanism allows easy adjustment for different belt thicknesses. Together with the integrated pressure equalization pad‚ it ensures reliable hot pressing of fusion joints. The PF-100S hot-pressing device is equally well suited for workshop use and on-site installations.
Habasit # H080690210
Specifications
| PF-100S Heater | |
|---|---|
| Belt Joint Type: | Flexproof |
| Belt/Tape Max Width: | 100mm (4 in) |
| Belt/Tape Max Thickness: | 3mm (0.10 in) |
| Working Temperature: | 190°C (374°F) |
| Cooling Method | Ambient air |
| Dimensions (mm): | 285 x 102 x 102mm |
| Dimensions (in.): | 11.20" x 4.00" x 4.00" |
| Power: | 1ph 120V 60Hz 150W |
