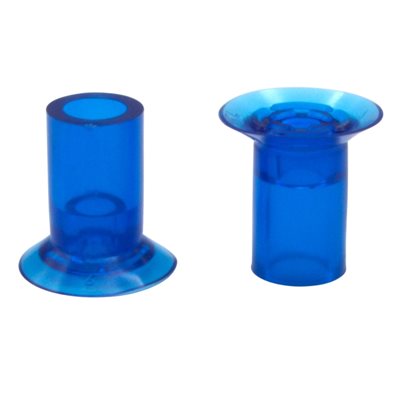

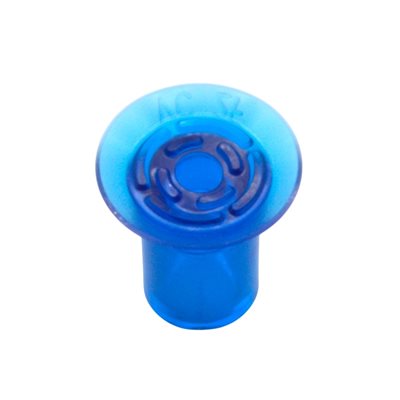

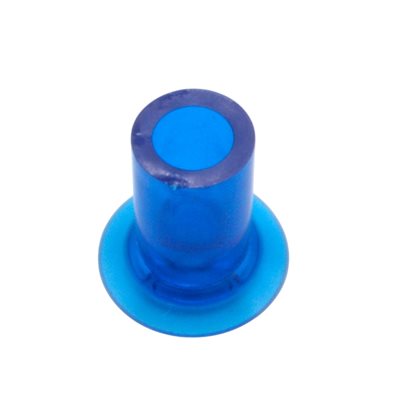

Blue Vinyl Vacuum Cup 1.06H x 1.02W x .41B w/Cleats Style C
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.06H x 1.02W x .41B w/Cleats Style C

Part Number: VC-2F

 Dimensions in mm
Outer Lip Diameter 1.02 25.9
 Mounting Stem ID 0.41 10.4
Overall Height 1.06 26.9
1x $4.90 /EACH
25x $4.60 /EACH
50x $4.05 /EACH
100x $3.40 /EACH
200x $2.69 /EACH
List price : $4.90 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on  Cleats: Yes
 Bellows: 0  Suggested Use: Carton Feeding

   Style C Dimensions in mm
 Dimension A  1.02 25.9
 Dimension B 1.06 26.9
 Dimension C 0.19 4.8
 Dimension D 0.63 16
 Dimension E 0.41 10.4
 Dimension E1 0.6 15.2
Dimension F 0.25 6.4
Dimension H  0.08 2

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
