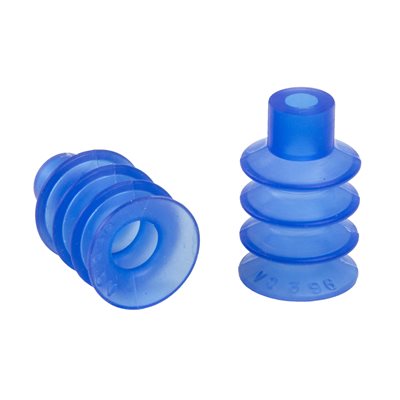

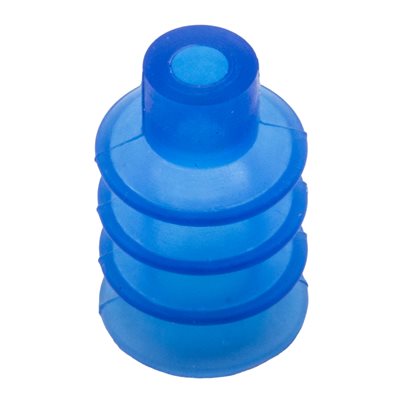

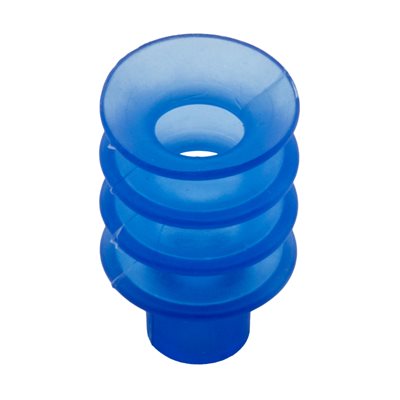

Blue Vinyl Vacuum Cup 1.08H x .71W x .18B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.08H x .71W x .18B Style K

Part Number: VC-396

 Dimensions in mm
Outer Lip Diameter 0.71 18
Mounting Stem I.D. 0.18 4.6
Overall Height 1.08 27.4
1x $5.68 /EACH
25x $5.32 /EACH
50x $4.42 /EACH
100x $3.79 /EACH
200x $3.17 /EACH
List price : $5.68 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Push On
 Bellows: 3  Suggested Use: Label Placement

   Style K Dimensions in mm
Dimension A 1 25.4
Dimension B 0.98 24.9
Dimension C 0.2 5.1
Dimension D 0.63 16
Dimension F 0.37 9.4

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
