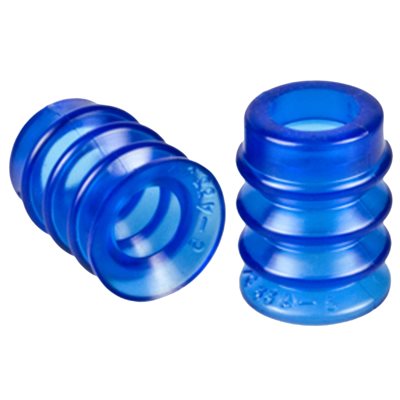

Blue Vinyl Vacuum Cup 1.08H x .77W x .38B Style D
Part Number: VC-33A-5
-
Contact us for pricing
- Availability: Available to Order
Dimensions | in | mm |
Outer Lip Diameter | 0.77 | 19.6 |
Mounting Stem I.D. | 0.38 | 9.7 |
Overall Height | 1.08 | 27.4 |
General Information | |
Material: Vinyl | |
Mounting Type: Screw and Collar | |
Bellows: 3 | Suggested Use: Uneven Surface |
![]() | Style D Dimensions | in | mm |
Dimension A | 0.77 | 19.6 | |
Dimension B | 1.08 | 27.4 | |
Dimension C | 0.76 | 19.3 | |
Dimension D | 0.67 | 17 | |
Dimension E | 0.43 | 10.9 | |
Dimension E1 | 0.18 | 4.6 | |
Dimension F | 0.38 | 9.7 |
MATERIAL SPECIFICATIONS | ||||
Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
