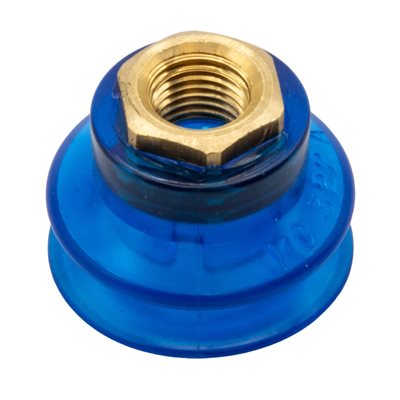

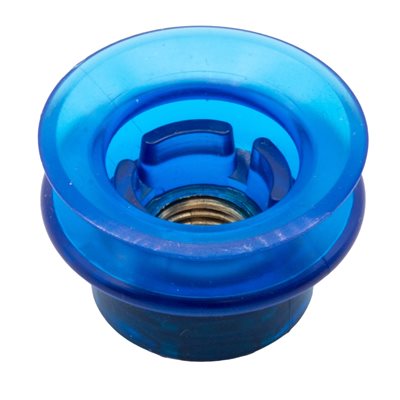

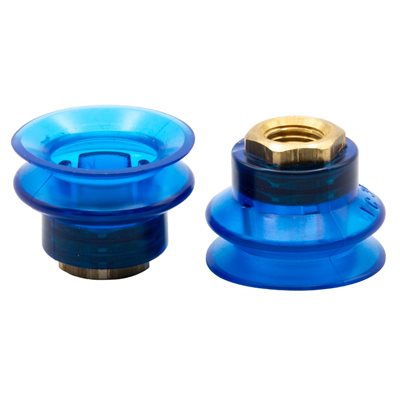

Blue Vinyl Vacuum Cup 1.12H x 1.5W x 1/4 NPT w/Cleats Style J
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.12H x 1.5W x 1/4 NPT w/Cleats Style J

Part Number: VC-322A 1/4 NPT

 Dimensions in mm
Outer Lip Diameter 1.5 38.1
Overall Height 1.12 28.4
1x $12.80 /EACH
25x $11.97 /EACH
50x $11.25 /EACH
100x $10.87 /EACH
200x $10.02 /EACH
List price : $12.80 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl  Thread Size: 1/4 NPT Female
 Mounting Type: Threaded  Cleats: Yes
 Bellows: 1  Suggested Use: Uneven Surface

   Style J Dimensions in mm
Dimension A 1.5 38.1
Dimension B 1.12 28.4
Dimension C 0.71 18
Dimension D 1.06 26.9
Dimension E 1 25.4
Dimension H 0.31 7.9

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
