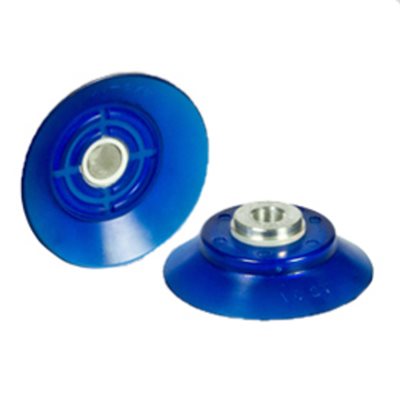

Blue Vinyl Vacuum Cup 1.18H x 4.25W x Threaded Hole ( Specify Thread) Style F
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.18H x 4.25W x Threaded Hole ( Specify Thread) Style F

Part Number: VC-27

 Dimensions in mm
Outer Lip Diameter 4.25 108
Overall Height 1.18 30

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl  Thread Size: Specify
 Mounting Type: Threaded  Cleats: Yes
 Bellows: 0  Suggested Use: Case Erector

   Style F Dimensions in mm
 Dimension A  4.25 108
 Dimension B 1.18 30
 Dimension C 0.5 12.7
 Dimension D 2.75 69.9
 Dimension E 2.43 61.7
 Dimension H 0.37 9.4

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
