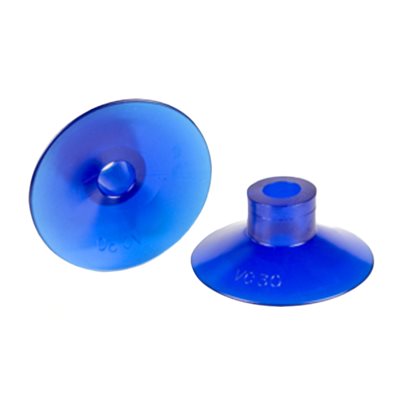

Blue Vinyl Vacuum Cup 1.39H x 3.08W x .5B Style C
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.39H x 3.08W x .5B Style C

Part Number: VC-30

 Dimensions in mm
Outer Lip Diameter 3.08 78.2
 Mounting Stem ID 0.5 12.7
Overall Height 1.39 35.3

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on  Cleats: No
 Bellows: 0  Suggested Use: Carton Feeding

   Style C Dimensions in mm
 Dimension A  3.08 78.2
 Dimension B 1.39 35.3
 Dimension C 0.64 16.3
 Dimension D 1.14 29
 Dimension F 0.47 11.9
 Dimension H 0.37 9.4

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
