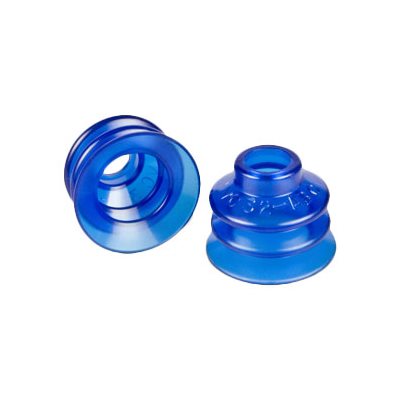

Blue Vinyl Vacuum Cup 1.45H x 1.94W x .75B Style D
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.45H x 1.94W x .75B Style D

Part Number: VC-32ABC

 Dimensions in mm
Outer Lip Diameter 1.94 49.3
 Mounting Stem I.D. 0.69 17.5
Overall Height 1.45 36.8

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Screw and Collar
 Bellows: 2  Suggested Use: Uneven Surface

   Style E Dimensions in mm
 Dimension A 1.94 49.3
 Dimension B 1.45 36.8
 Dimension C 1.17 29.7
 Dimension D 0.98 24.9
 Dimension E 0.75 19.1
Dimension E1 0.2 5.1
Dimension F 0.69 17.5

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
