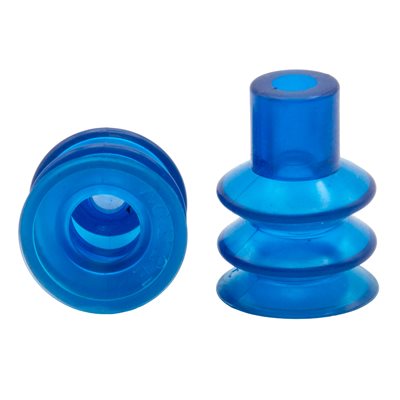

Blue Vinyl Vacuum Cup 1.52H x 1.14W x .31B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.52H x 1.14W x .31B Style K

Part Number: VC-33E

 Dimensions in mm
Outer Lip Diameter 1.14 29
Mounting Stem I.D. 0.31 7.9
Overall Height 1.52 38.6
1x $7.70 /EACH
25x $7.00 /EACH
50x $6.60 /EACH
100x $5.85 /EACH
200x $5.25 /EACH
500x $4.85 /EACH
List price : $7.70 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 2  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A  1.14 29
 Dimension B 1.52 38.6
 Dimension C 0.92 23.4
 Dimension D 0.61 15.5
 Dimension E 0.31 7.9
 Dimension E1 0.54 13.7
 Dimension F 0.28 7.1

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
