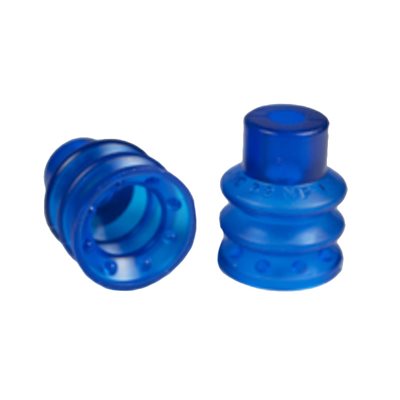

Blue Vinyl Vacuum Cup 1.84H x 1.52W x .42B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup 1.84H x 1.52W x .42B Style K

Part Number: VC-32MP-1

 Dimensions in mm
Outer Lip Diameter 1.52 38.6
Mounting Stem I.D. 0.42 10.7
Overall Height 1.84 46.7
$8.70 /EACH
List price: $8.70 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 2  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A  1.52 38.6
 Dimension B 1.84 46.7
 Dimension C 1.19 30.2
 Dimension D 0.98 24.9
 Dimension F 0.42 10.7

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
