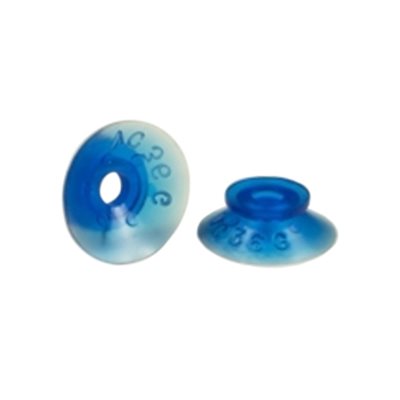

Blue Vinyl Vacuum Cup .34H x 1.00W x .25B Style A
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .34H x 1.00W x .25B Style A

Part Number: VC-36G

 Dimensions in mm
Outer Lip Diameter 1 25.4
Mounting Stem I.D. 0.25 6.4
Overall Height 0.34 8.6

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Flange  Cleats: Yes
 Bellows: 0  Suggested Use: Label Placement

   Style A Dimensions in mm
Dimension A 1 25.4
Dimension B 0.34 8.6
Dimension C 0.23 5.8
Dimension D 0.43 10.9
Dimension E 0.25 6.4
Dimension F 0.62 15.7
Dimension F1  0.07 1.8

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
