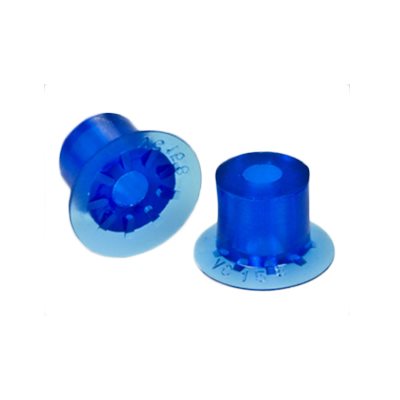

Blue Vinyl Vacuum Cup .43H x .71W x .18B Style B
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .43H x .71W x .18B Style B

Part Number: VC-158

 Dimensions in mm
Outer Lip Diameter 0.71 18
 Mounting Stem ID 0.18 4.6
Overall Height 0.43 10.9
1x $5.40 /EACH
25x $5.06 /EACH
50x $4.47 /EACH
100x $3.73 /EACH
200x $2.97 /EACH
List price : $5.40 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Snap Over  Cleats: Yes
 Bellows: 0  Suggested Use: Pick and Place

   Style B Dimensions in mm
 Dimension A  0.71 18
 Dimension B 0.43 10.9
 Dimension C 0.04 1
 Dimension D 0.45 11.4
 Dimension F 0.18 4.6
 Dimension H 0.06 1.5

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
