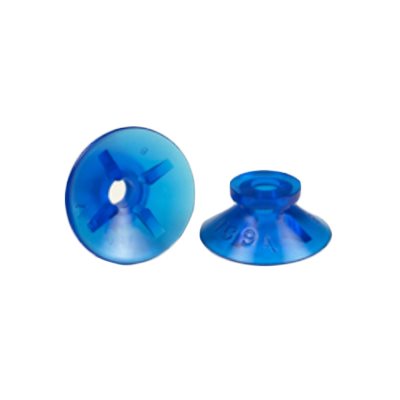

- Blue Vinyl Vacuum Cup .46H x 1.14W x .25B w/Cleats Style A
Blue Vinyl Vacuum Cup .46H x 1.14W x .25B w/Cleats Style A
Part Number: VC-9A
| Dimensions | in | mm |
| Outer Lip Diameter | 1.14 | 29 |
| Mounting Stem ID | 0.25 | 6.4 |
| Overall Height | 0.46 | 11.7 |
| 1x | $4.90 /EACH |
| 25x | $4.40 /EACH |
| 50x | $3.85 /EACH |
| 100x | $3.20 /EACH |
| 200x | $2.60 /EACH |
- Availability: Available to Order
| General Information | |
| Material: Vinyl | |
| Mounting Type: Flange | Cleats: Yes |
| Bellows: 0 | Suggested Use: Label Placement |
 | Style A Dimensions | in | mm |
| Dimension A | 1.14 | 29 | |
| Dimension B | 0.46 | 11.7 | |
| Dimension C | 0.32 | 8.1 | |
| Dimension D | 0.45 | 11.4 | |
| Dimension E | 0.25 | 6.4 | |
| Dimension F | 0.62 | 15.7 | |
| Dimension F1 | 0.09 | 2.3 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
