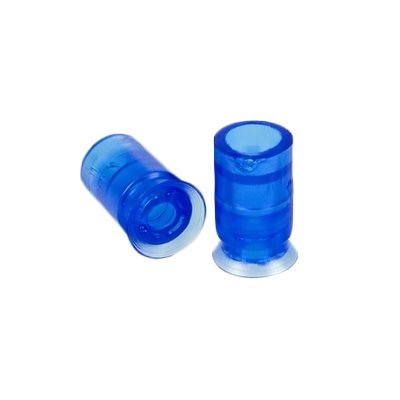

Blue Vinyl Vacuum Cup .46H x .3W x .18B Style C
Part Number: VC-MINI-312
| Dimensions | in | mm |
| Outer Lip Diameter | 0.3 | 7.6 |
| Mounting Stem I.D. | 0.18 | 4.6 |
| Overall Height | 0.46 | 11.6 |
-
Contact us for pricing
- Availability: Available to Order
| General Information | |
| Material: Vinyl | |
| Mounting Type: Push On | Cleats: Yes |
| Bellows: 0 | Suggested Use: Carton Feeding |
 | Style C Dimensions | in | mm |
| Dimension A | 0.3 | 7.6 | |
| Dimension B | 0.46 | 11.6 | |
| Dimension C | 0.05 | 1.3 | |
| Dimension D | 0.28 | 7.1 | |
| Dimension F | 0.18 | 4.6 | |
| Dimension F | 0.02 | 0.5 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
