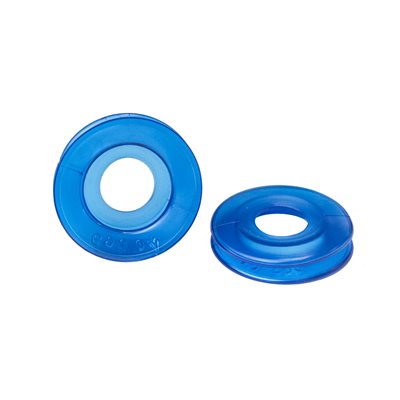

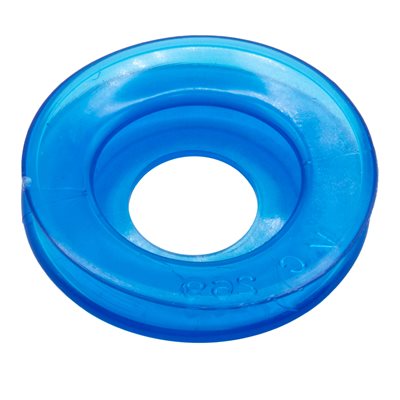

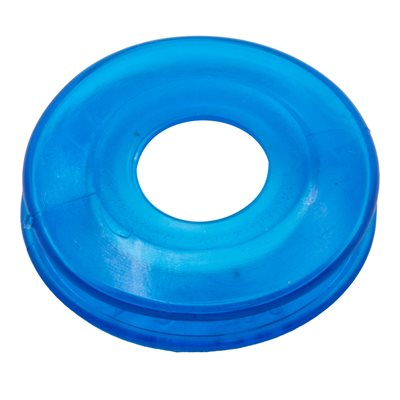

Blue Vinyl Vacuum Cup .50H x 1.80W x .65B Style D
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .50H x 1.80W x .65B Style D

Part Number: VC-269

 Dimensions in mm
Outer Lip Diameter 1.8 45.7
Mounting Stem I.D. 0.65 16.5
Overall Height 0.5 12.7
1x $7.45 /EACH
25x $7.25 /EACH
50x $6.70 /EACH
100x $5.90 /EACH
200x $5.35 /EACH
List price : $7.45 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Screw and Collar
 Bellows: 1  Suggested Use: Uneven Surface

   Style D Dimensions in mm
 Dimension A  1.8 45.7
 Dimension B 0.5 12.7
 Dimension C 0.5 12.7
 Dimension D 1 25.4
 Dimension E 0.5 12.7
 Dimension E1 0.07 1.8
 Dimension F 0.65 16.6

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
