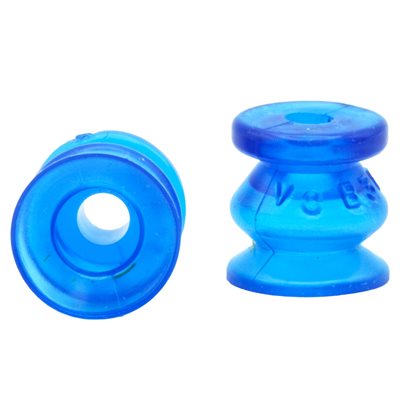

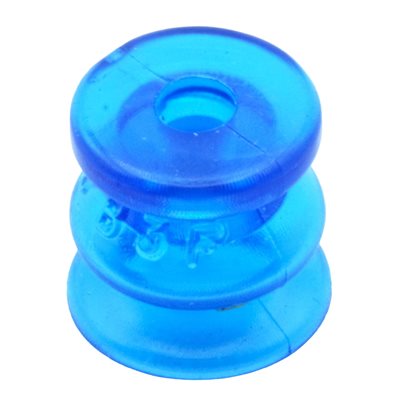

Blue Vinyl Vacuum Cup .51H x .51W x .15B Style I
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .51H x .51W x .15B Style I

Part Number: VC-B3F

 Dimensions in mm
Outer Lip Diameter 0.51 13
 Mounting Stem ID 0.15 3.8
Overall Height 0.51 13
1x $4.73 /EACH
25x $4.50 /EACH
50x $4.04 /EACH
100x $3.49 /EACH
200x $3.01 /EACH
List price : $4.73 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Flange
 Bellows: 1  Suggested Use: Label Placement

   Style I Dimensions in mm
 Dimension A  0.51 13
 Dimension B 0.51 13
 Dimension C 0.37 9.4
 Dimension E 0.15 3.8
 Dimension F 0.5 12.7
 Dimension F1 0.1 2.5

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
