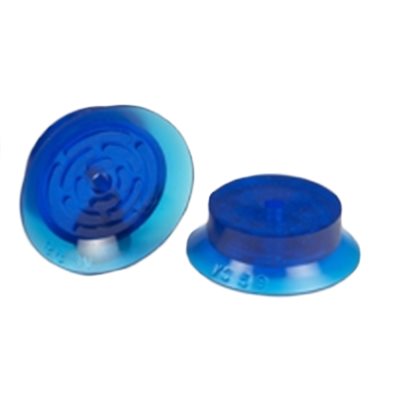

Blue Vinyl Vacuum Cup .65H x 2.00W x .25B Style B
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .65H x 2.00W x .25B Style B

Part Number: VC-59 1/4 HL

 Dimensions in mm
Outer Lip Diameter 2 50.8
 Mounting Stem ID 0.25 6.4
Overall Height 0.65 16.5

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Snap Over  Cleats: No
 Bellows: 0  Suggested Use: Pick and Place

   Style B Dimensions in mm
Dimension A  2 50.8
Dimension B 0.65 16.5
Dimension C 0.25 6.4
Dimension D 1.56 39.6
Dimension E 0.75 19.1
Dimension E1 0.25 6.4
Dimension F 0.25 6.4
Dimension H  0.25 6.4

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
