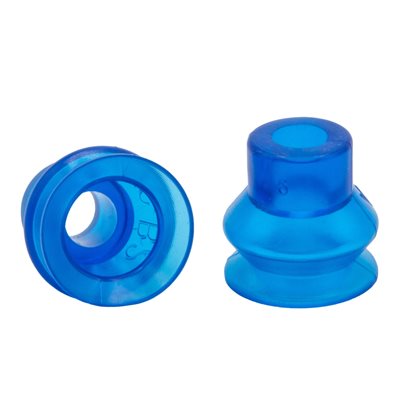

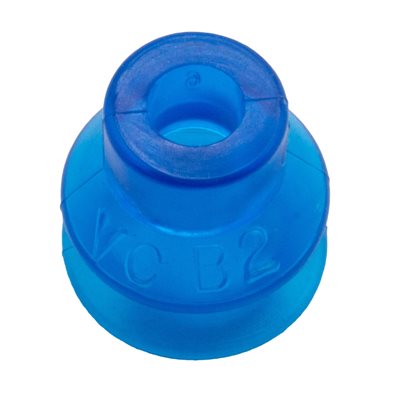

Blue Vinyl Vacuum Cup .74H x .75W x .26B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .74H x .75W x .26B Style K

Part Number: VC-B2

 Dimensions in mm
Outer Lip Diameter 0.75 19.1
 Mounting Stem ID 0.26 6.6
Overall Height 0.74 18.8
1x $4.73 /EACH
25x $4.50 /EACH
50x $4.04 /EACH
100x $3.49 /EACH
200x $3.33 /EACH
500x $3.11 /EACH
1000x $2.77 /EACH
List price : $4.73 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A  0.75 19.1
 Dimension B 0.74 18.8
 Dimension C 0.46 11.7
 Dimension D 0.51 13
 Dimension F 0.26 6.6

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
