- Blue Vinyl Vacuum Cup .75H x 1.93W x .56B Style B

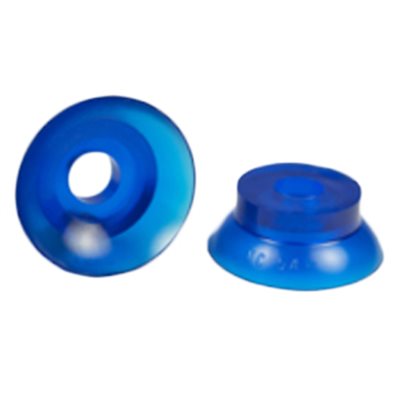

Blue Vinyl Vacuum Cup .75H x 1.93W x .56B Style B
Part Number: VC-54
| Dimensions | in | mm |
| Outer Lip Diameter | 1.93 | 49 |
| Mounting Stem ID | 0.56 | 14.2 |
| Overall Height | 0.75 | 19.1 |
-
Contact us for pricing
- Availability: Available to Order
| General Information | |
| Material: Vinyl | |
| Mounting Type: Snap Over | Cleats: No |
| Bellows: 0 | Suggested Use: Pick and Place |
 | Style B Dimensions | in | mm |
| Dimension A | 1.93 | 49 | |
| Dimension B | 0.75 | 19.1 | |
| Dimension C | 0.42 | 10.7 | |
| Dimension D | 1.37 | 34.8 | |
| Dimension E | 0.92 | 23.4 | |
| Dimension E1 | 0.25 | 6.4 | |
| Dimension F | 0.56 | 14.2 | |
| Dimension H | 0.31 | 7.9 |
| MATERIAL SPECIFICATIONS | ||||
| Material | Working Temperature | Wear Resistance | Oil Resistance | Durometer |
| Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| FDA Vinyl | +32 - +125 F | Excellent | Fair | A20 - A70 Range |
| Oil Resistant FDA Vinyl | +32 - +125 F | Good | Excellent | A40 - A60 Range |
| Polyurethane | +32 - +150 F | Good | Good | A20 - A70 Range |
| Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
| FDA Silicone | -50 - +400 F | Good | Good | A40 - A55 Range |
