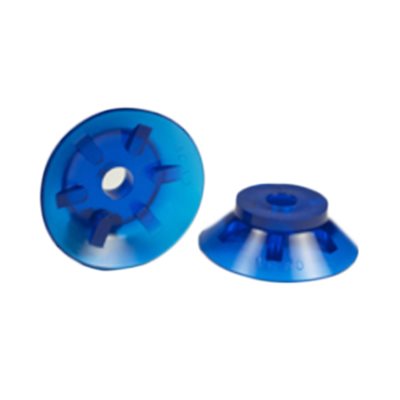

Blue Vinyl Vacuum Cup .79H x 2.5W x .5B Style B
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .79H x 2.5W x .5B Style B

Part Number: VC-70 1/2 HL

 Dimensions in mm
Outer Lip Diameter 2.5 63.5
Mounting Stem I.D. 0.5 12.7
Overall Height 0.79 20.1

  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Snap Over  Cleats: No
 Bellows: 0  Suggested Use: Pick and Place

   Style B Dimensions in mm
 Dimension A  2.5 63.5
 Dimension B 0.79 20.1
 Dimension C 0.62 15.7
 Dimension D 1.5 38.1
 Dimension F 0.5 12.7
 Dimension H 0.21 5.3

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
