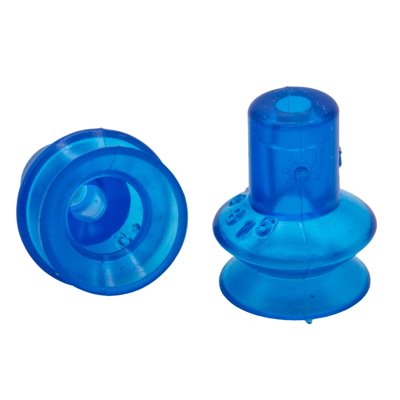

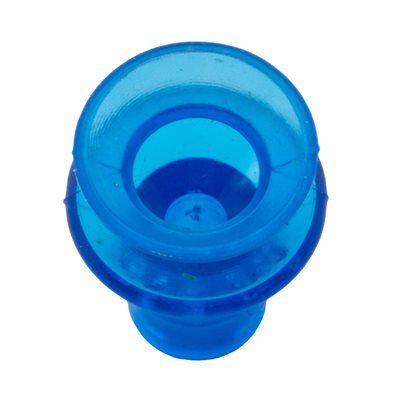

Blue Vinyl Vacuum Cup .81H x .61W x .14B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .81H x .61W x .14B Style K

Part Number: VC-B15

 Dimensions in mm
Outer Lip Diameter 0.61 15.5
Mounting Stem I.D. 0.14 3.6
Overall Height 0.81 20.6
1x $4.80 /EACH
25x $4.35 /EACH
50x $3.90 /EACH
100x $3.50 /EACH
200x $3.15 /EACH
List price : $4.80 /EACH
    • EACH
  • Availability: In stock
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A  0.61 15.5
 Dimension B 0.81 20.6
 Dimension C 0.38 9.7
 Dimension D 0.36 9.1
 Dimension F 0.14 3.6

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
