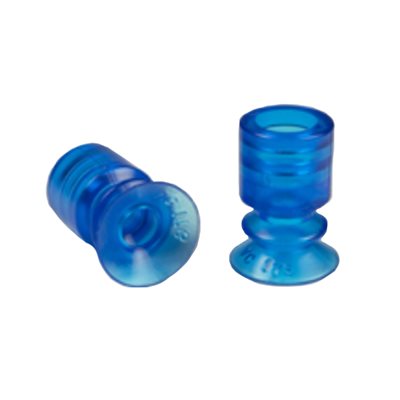

Blue Vinyl Vacuum Cup .83H x .64W x .56B Style H

Part Number: VC-176

 Dimensions in mm
Outer Lip Diameter 0.64 16.3
 Mounting Stem I.D. 0.34 8.6
Overall Height 0.83 21.1
  • Contact us for pricing

  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Snap Over
 Bellows: 1  Suggested Use: Uneven Surface

   Style H Dimensions in mm
 Dimension A 0.64 16.3
 Dimension B 0.83 21.1
 Dimension C 0.38 9.7
 Dimension D 0.52 13.2
 Dimension E 0.45 11.4
Dimension E1 0.08 2
Dimension F 0.34 8.6

MATERIAL SPECIFICATIONS
 Material Working
Temperature
Wear
Resistance
Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
