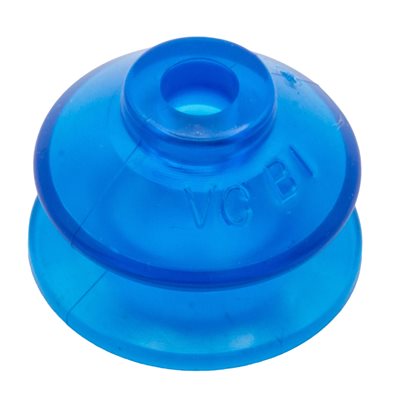

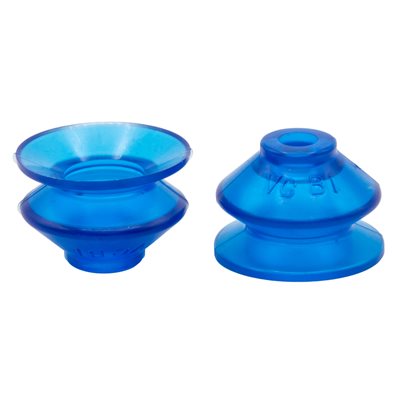

Blue Vinyl Vacuum Cup .84H x 1.2W x .27B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .84H x 1.2W x .27B Style K

Part Number: VC-B1

1x $6.10 /EACH
25x $5.81 /EACH
50x $5.23 /EACH
100x $4.49 /EACH
200x $3.75 /EACH
List price : $6.10 /EACH
    • EACH
  • Availability: In stock
 Dimensions in mm
Outer Lip Diameter 1.2 30.5
 Mounting Stem ID 0.27 6.9
Overall Height 0.84 21.4

 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A  1.2 30.5
 Dimension B 0.84 21.4
 Dimension C 0.74 18.8
 Dimension D 0.55 14
 Dimension F 0.27 6.9

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
