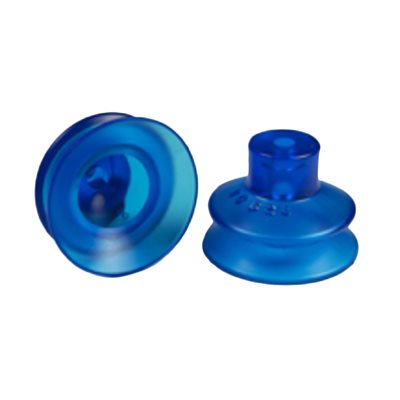

Blue Vinyl Vacuum Cup .8H x 1.09W x .14B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .8H x 1.09W x .14B Style K

Part Number: VC-B28

 Dimensions in mm
Outer Lip Diameter 1.09 27.7
 Mounting Stem ID 0.14 3.6
Overall Height 0.8 20.3
$5.25 /EACH
List price: $5.25 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A  1.09 27.7
 Dimension B 0.8 20.3
 Dimension C 0.47 11.9
 Dimension D 0.5 12.7
 Dimension E 0.14 3.6
 Dimension F 0.54 13.6

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
