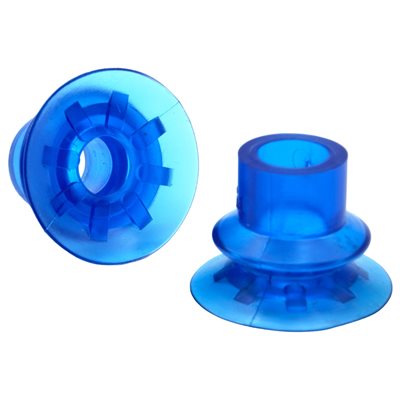

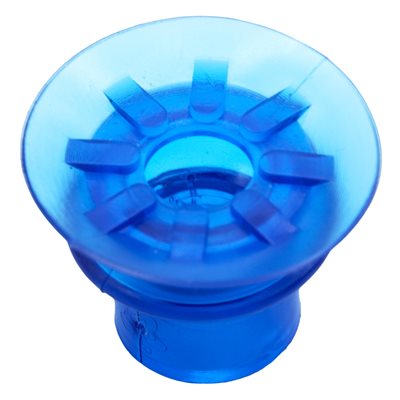

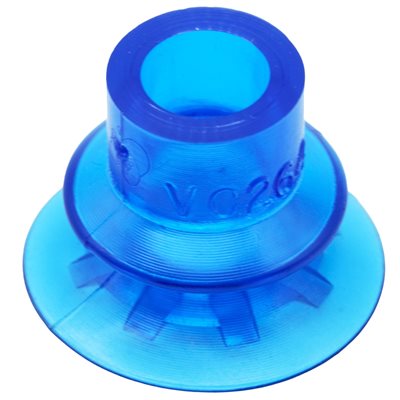

Blue Vinyl Vacuum Cup .95H x 1.25W x .44B Style K
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge

Blue Vinyl Vacuum Cup .95H x 1.25W x .44B Style K

Part Number: VC-264

 Dimensions in mm
Outer Lip Diameter 1.25 31.8
Mounting Stem ID 0.44 11.2
Overall Height 0.95 24.1
1x $5.96 /EACH
25x $5.40 /EACH
50x $4.86 /EACH
100x $4.17 /EACH
200x $3.49 /EACH
List price : $5.96 /EACH
    • EACH
  • Availability: Available to Order
 General Information
 Material: Vinyl
 Mounting Type: Push on
 Bellows: 1  Suggested Use: Label Placement

   Style K Dimensions in mm
 Dimension A 1.25 31.8
 Dimension B 0.95 24.1
 Dimension C 0.5 12.7
 Dimension D 0.67 17
 Dimension F 0.44 11.2

MATERIAL SPECIFICATIONS
 Material Working
Temperature		 Wear
Resistance		 Oil Resistance Durometer
 Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
FDA Vinyl +32 - +125 F Excellent Fair A20 - A70 Range
Oil Resistant FDA Vinyl +32 - +125 F Good Excellent A40 - A60 Range
Polyurethane +32 - +150 F  Good  Good  A20 - A70 Range
 Silicone -50 - +400 F   Good  Good  A40 - A55 Range
 FDA Silicone -50 - +400 F  Good  Good  A40 - A55 Range
