Challenge JF Single-Spindle Paper Drill
Part Number: CMC-331-11A
The Challenge JF Single-Spindle Drill is an industrial grade paper drill
Single spindle paper drill with auto-trip side guide
Max drilling capacity of 2"
Table size is 19.5" x 42"
List price: $3,225.00 /EACH
- Availability: Available to Order
Features
• Accommodate 2" capacity drill bits for hole diameters ranging from 1/8" to 1/2"
• Foot pedal operation for hands free use
• Auto-trip side guide automatically releases the paper guide to advance to the next stop setting upon the completion of each stroke cycle
• Adjustable margins allow locking of the backgauge to the drill table from 0" to 4” from the paper edge
• Cornering attachment allows for corner rounding cuts from 1/8" to 1/2" radius (sold separately)
• Includes (1) 1/4" and (1) 5/16" hollow drill bit, (12) 1.5" wood drill blocks, (1) auto-trip backgauge, (1) manual, (1) tool kit
Specifications
| General | |
|---|---|
| Drill Head Operation: | Foot Pedal |
| Number of Drill Heads: | 1 |
| Available Drill Sizes: | 1/8" to 1/2" |
| Lift Capacity: | 2" |
| Min Distance Between Holes: | 3/8" center-to-center |
| Drill to Side Guide Range: | 0" to 18.5" |
| Drill to Backgauge Range: | 0" to 4" |
| Side Guide Trip: | Automatic |
| Cornering Capacity (with Cornermatic): | 1" |
| Dimensions | |
|---|---|
| Table Size: | 19.5" x 42" |
| Table Height: | 38" |
| Height x Width x Length: | 60" x 42" x 32" |
| Space Needed: | 32" x 42" |
| Actual Weight: | 154 lbs |
| Shipping Weight: | 225 lbs |
| Electrical | |
| Base Power: | 1 Ph, 60 Hz, 115VAC |
Documents
Compare Challenge Models
| Model Name | Handy-Drill | Model JF | EH-3 Standard | EH-3 Auto-Trip |
|---|---|---|---|---|
| Model: |  |  |  | |
| Number of Drill Heads: | 1 | 1 | 3 | 3 |
| Max Capacity: | 2.5" | 2" | 2.5" | 2.5" |
| Operation: | Hand Lever | Foot Pedal | Hydraulic | Hydraulic |
| Table Size: | 18" x 19" | 19.5" x 42" | 19.5" x 31.5" | 19.5" x 31.5" |
| Space Needed: | 22" x 24" | 32 x 42" | 36" x 41.5" | 36" x 41.5" |
| Side Guide Trip: | Manual | Automatic | Manual | Automatic |
| Max Margin to Sheet Edge: | 2.5" | 4" | 5" | 4.5" |
| Base Power: | 115V, 60 Hz | 115V, 60 Hz | 208/230V, 60 Hz, 1Ph | 208/230V, 60 Hz, 1Ph |
Accessories
• Paper Drill Bits - Select from a variety of diameters and coatings (2" Capacity only)
• Lubricating Wax Stick - Extend the life of your drill bits by keeping them lubricated.

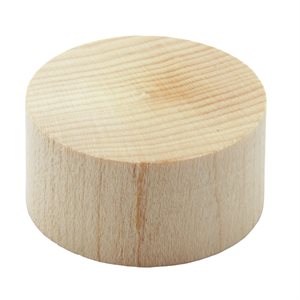

• Drill Blocks - 1.5" diameter wood drill blocks provide a backing during the drilling process for clean, precise holes.
• Drill Sharpener - Keep drill bits razor sharp - a dull bit will result in poor cuts or drill bit breakage (other options available)
• Burr Removing Stone - A fine grit stone will help remove any burrs from drill bit sharpening and use
• Chip Remover - Remove plugs that build up inside paper drill bits to keep chips moving freely into the chip bin
