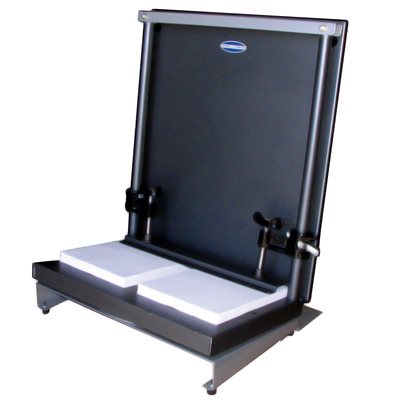

Challenge Handy-Padder Padding Press
Part Number: CMC-593
The Handy-Padder Padding Press design provides a portable and compact table top padding device for the right price.
$685.00 /EACH
List price: $685.00 /EACH
List price: $685.00 /EACH
- Availability: Available to Order
1-2-3 Operation
1-Lock & Load: Lock the removable plate in place. The 8 degree table slant allows gravity to do all the work of aligning stock and keeping it square. Load up to 8,000 8.5" sheets of 20# bond.
2-Clamp: After loading is complete, aligned stacks are clamped in seconds. Place the clamping bar on top of your paper, slide the self locking, quick-release clamps down to the bar and tighten the screws.
3-Turn & Pad: Turn the table around and remove the plate for complete access to your padding surface.
Specifications
| Technical Data | |
|---|---|
| Max Lift Height: | 16" |
| Max Lift Width: | 17" - 3/4" |
| Lift Depth: | 4" to 13"+ |
| Capacity Example: | 8,000 8.5" x 11" 20# bond |
| Overall Base Area: | 20" - 15/16" |
| Overall Length: | 17" - 1/32" |
| Overall Height: | 26" - 3/16" |
| Net Weight: | 50 lbs |
