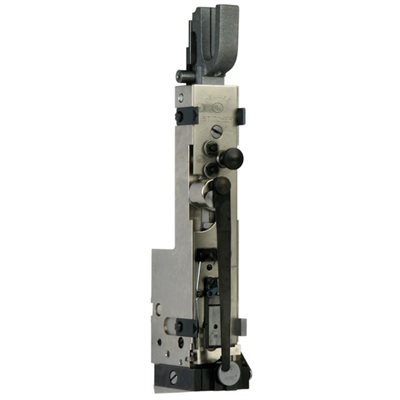

Stitcher Head Assembly
Part Number: 2601DSHD251/2
The 26/26D head is one of the most popular style heads in the world for both OEMs and end users alike. It is used in hundreds of collator applications, as well with a host of different stitcher machines. The design of this head is the older classic version of the M2000.
Includes Stitcher Head, Clincher Assembly, Wire Guide
List price: $1,320.00 /EACH
- Availability: Available to Order
| Specifications | |
| Machine Model Compatibility: | Harris 455, 501, 531, 532, 542, 562 |
| Capacity: | 2 Sheets to 1/4" |
| Crown Size: | 1/2" |
| Wire Sizes: | 24-30 gauge round |
| Minimum Center-to-Center Distance: | 1-7/8" |
| Speed: | 12,000 stitches per hour |

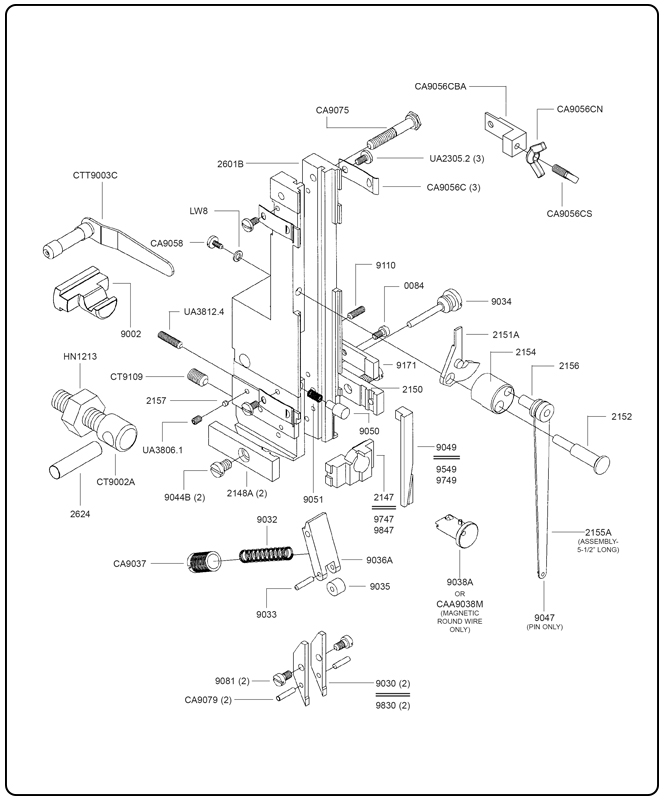

Bonnet Sub-Assembly - "D" Style
Click part numbers in the diagram for product pages

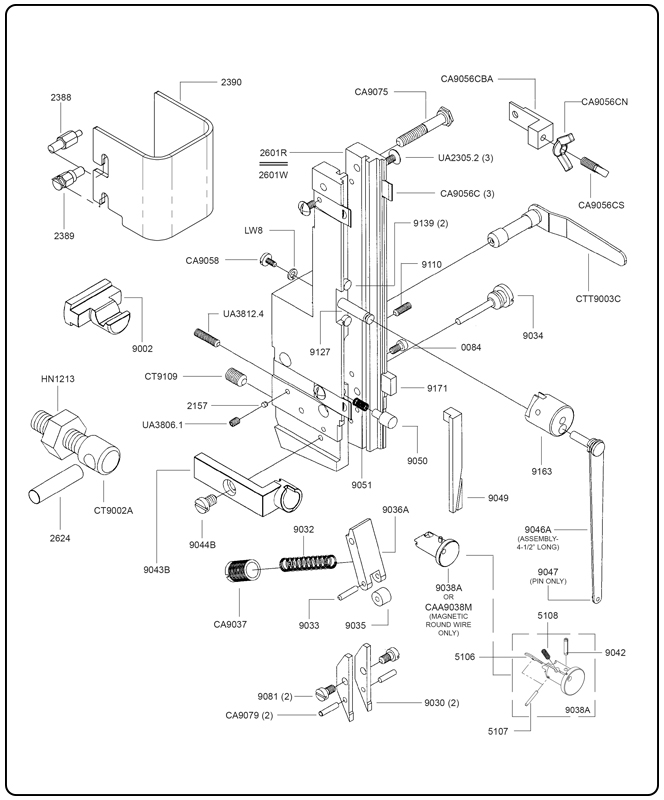

Bonnet Sub-Assembly - "A" Style
Click part numbers in diagram for product pages

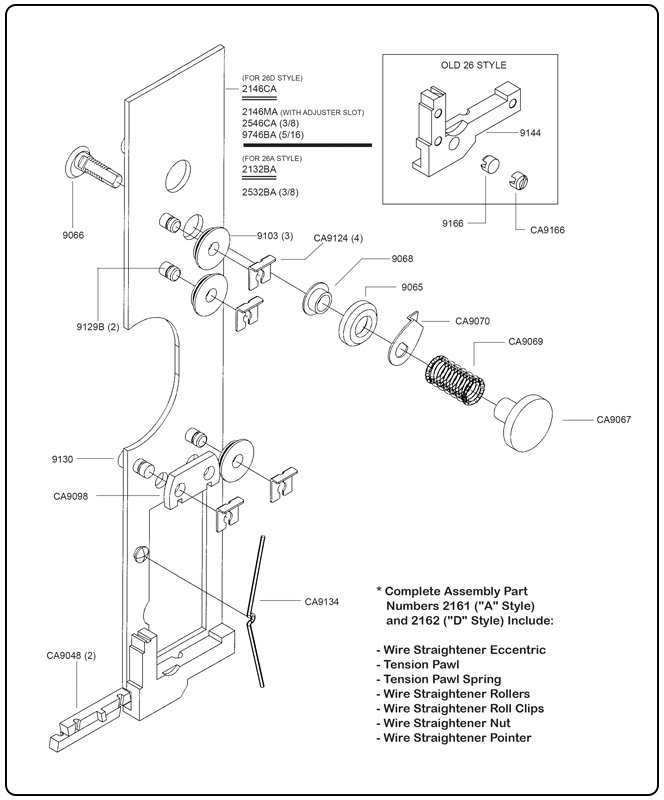

Face Plate Assembly
Click part numbers in the diagram for product pages

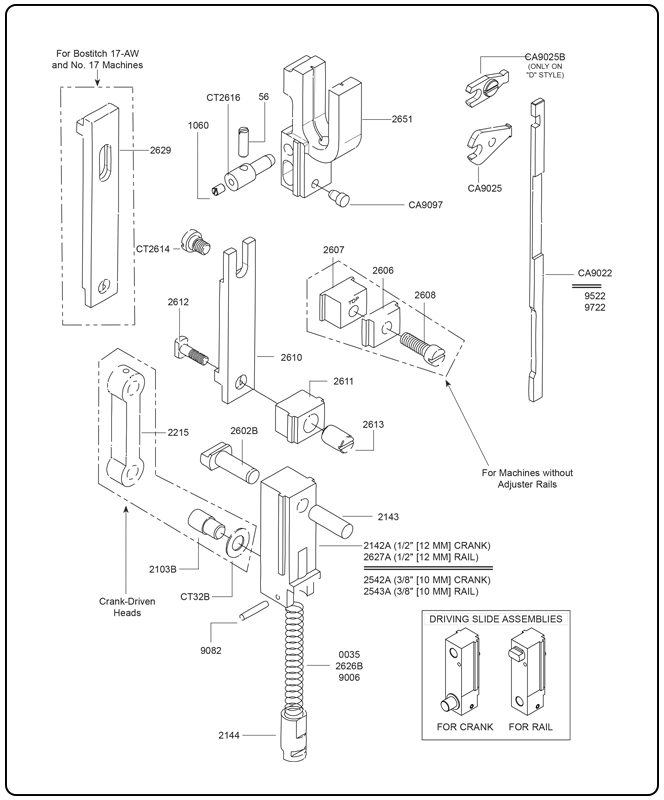

Driving Slide Assembly - "D" Style
Click part numbers in the diagram for product pages

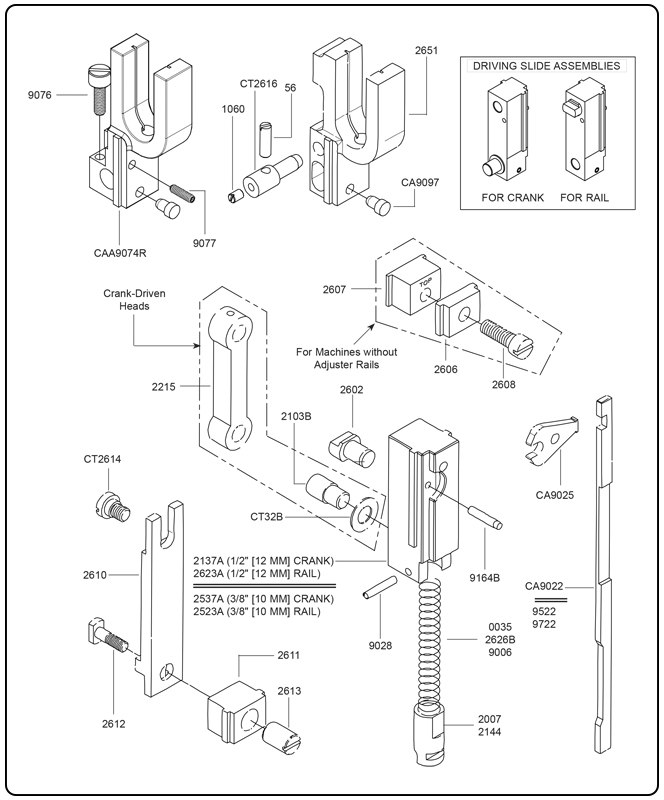

Driving Slide Assembly - "A" Style
Click part numbers in the diagram for product pages
Bender Bar Assembly
Click part numbers in the diagram for product pages
Wire Guide Bracket and Spring
Click part numbers in the diagram for product pages
Clincher Plate Assemblies
Click part numbers in the diagram for product pages
