Eastey Automatic L-Sealer, 25" x 30", Hot Knife, 220V, Value Series

Part Number: VSA2530-TKV1

Proven reliable over and over again, these intermediate-level EASTEY Automatic L-Sealers provide you with all the quality features found in many higher-priced machines. They are designed and built to give you all the performance features needed for positive sealing a wide variety of films including polyolefin, polyethylene, and PVC.

$46,750.00 /EACH
List price: $46,750.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Designed to seal most polyolefin, polyethylene, and PVC shrink films
• All-welded main frame from 12 gauge steel
• Normal speed infeed and outfeed conveyors
• High Speed with product indexing
• Motorized seal height adjustment for various product sizes
• Seal head equipped with pneumatic air cylinder for automatic sealing
• Hot knife seal bar for consistent and clean seal
• Consistent pressure across seal bar
• Automatic cycle timing with adjustable dwell time
• HMI Controller with simple menus for easy operation
• Film tracking wheels keep film in place
• Multiple pin perforator provides precise air evacuation
• Heavy duty casters for transportation within plant
• Leveling legs provide sturdy base once in place
• 17"W x 21"L seal area
• Scrap unwind automatically wraps up the scrap film left from the sealer
• Easy to use design requires minimal training and maintenance
• Maximum film width up to 22"
• Maximum film roll OD up to 12"
• 80 psi
• Made in USA

Specifications

Specifications
Seal Dimensions: 30" Front x 25" Side
Machine Dimensions: 71" W x 69" H x 95" L
Accepted Films: Polyolefin, Polyethylene, and PVC
Max Film Width: 32"
Sealer Head Type: Hot Knife
Power: 220V 20A Single Phase
Weight:
 1100 lbs.
Shipping Weight: 1200 lbs.

Documents

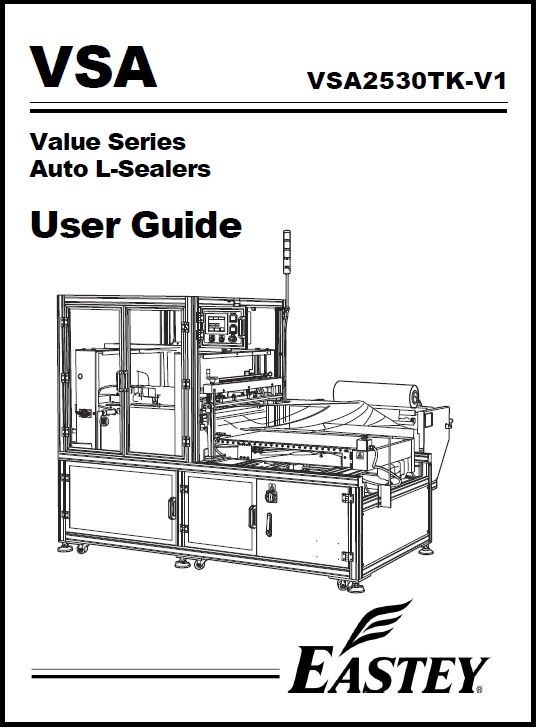

 Technical Sheet User Guide
