Eastey BB-3 Bottom Belt Case Taper w/ 3 in. Tape Head
Double-tap and hold to zoom.
Mouse over the image to zoom.

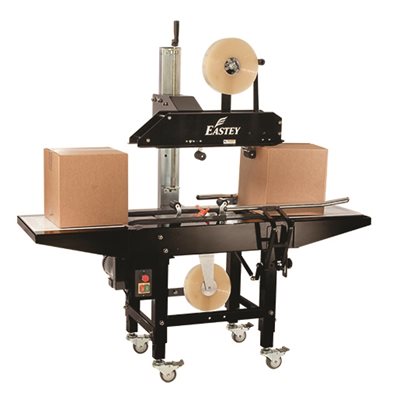

Eastey BB-3 Bottom Belt Case Taper w/ 3 in. Tape Head

Part Number: 5001632

The Eastey BB-3 case taper is an affordable solution for sealing the tops and bottoms of cases, perfect for high-volume sealing tasks. It features adjustable self-centering side rails, a durable bottom belt drive, and a sturdy mast that can be easily adjusted to accommodate various case sizes.

The BB-3 is known for its reliability, durability, and versatility, embodying the quality Eastey is known for. Its straightforward and efficient design stands out as one of the market's most dependable case tapers, minimizing production and maintenance time while offering a quicker and more effective option than manual taping.

With the BB-3, changing case sizes is quick and straightforward, thanks to adjustable side rails and the ability to handle boxes of any length over 5 inches. It can seal cases 6 to 21 inches wide and 4 to 20.5 inches deep. Adjustments are simple, with hand-tightened knobs on a single-mast design, allowing for on-the-go changes. Additionally, its open design makes it ideal for adding ink jet printers for box coding.

$4,395.00 /EACH
List price: $4,395.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Plug-in and go operation
• Powder coated 12 gauge steel
• Interchangeable top and bottom tape cartridges
• Adjustable side rails
• Industrial strength side belts
• Safe single mast design
• Easy hand-tighten adjustments
• No air required
• Low maintenance
• Includes 2 pack tables and casters

Specifications

Technical Data
Sealer Type: Bottom Belt, Top & Bottom Sealer
Machine Construction: Industrial strength 12 gauge steel, powder coated
Belt Speed: 60 ft / min
Tape Speed: 30 cases / min(depending on box size)
Conveyor Height: Adjustable from 22.25" to 35.25"
Min Box Size: 5" L x 6" W x 4" D
Max Box Size: 21" w X 20.5" D
Tape Size: 2" wide pressure sensitive tape x 15" diameter
Air Requirements: N/A
Electrical: 110 VAC, 60 Hz, 6A

Documents


 Data Sheet User Guide Taper Overview

Videos

SB-2 EX Narrow Box Sealing



SB-2 EX Taping Small Boxes


SB-2 EX Case Taper with L-Clip Tapehead

SB-2 EX Taping Small Boxes


SB-2 EX Case Taping System
