Eastey Shrink Combo Unit, Hot Wire, Live Roller, 16" x 20", Value Series
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Eastey

Eastey Shrink Combo Unit, Hot Wire, Live Roller, 16" x 20", Value Series

Part Number: VS1620-TLRV1

Proven reliable over and over again, these intermediate-level EASTEY L-Sealers provide you with all the quality features found in much higher-priced machines. Depending on your application, users can choose between a hot knife or hot band seal system to provide a positive seal on a wide variety of films including polyethylene, polyolefin, and PVC.

$9,895.00 /EACH
List price: $9,895.00 /EACH
    • EACH
  • Availability: Available to Order

Features

• Seal head system available as a hot knife or hot band depending on your application
• Designed to seal polyethylene, polyolefin, or PVC shrink film
• All-welded main frame from 12 gauge steel
• Seal head equipped with gas shock head return
• Dual locking magnet clamps apply consistent pressure across the seal bar
• Automatic cycle timing with adjustable dwell time
• Solid state temperature control adjustable for a variety of film
• Wide product tray provides a large work area
• Seal head can be raised or lowered to center-seal product
• Film rack positioned beneath product tray for simple film loading
• Adjustable pin perforator provides air evacuation
• Positive shrinking of all products assured with consistent air flow
• 15” wide x 8” tall x 26” long chamber
• Variable speed tunnel conveyor and variable air flow for a variety of shrink applications
• Rugged stainless steel mesh belt conveyor or live roller conveyor on tunnel
• Seal size of 16” x 20”
• Maximum film width up to 18”
• Heavy-duty casters for transportation within the plant
• Easy-to-use design requires minimal training and maintenance

Specifications

Specifications
Seal Dimensions: 20" Front x 16" Side
Heat Chamber Dimensions: 15"W x 8"H x 26"L
Machine Dimensions: 32"W x 53.25"H x 86.5"L
Accepted Films: Polyolefin, Polyethylene, and PVC
Max Film Width:  18"
Sealer Head Type: Hot Wire
Tunnel Belt Type: Live Roller
Power: 220V 30A Single Phase
Weight:
 650 lbs.
Shipping Weight: 750 lbs.

Documents

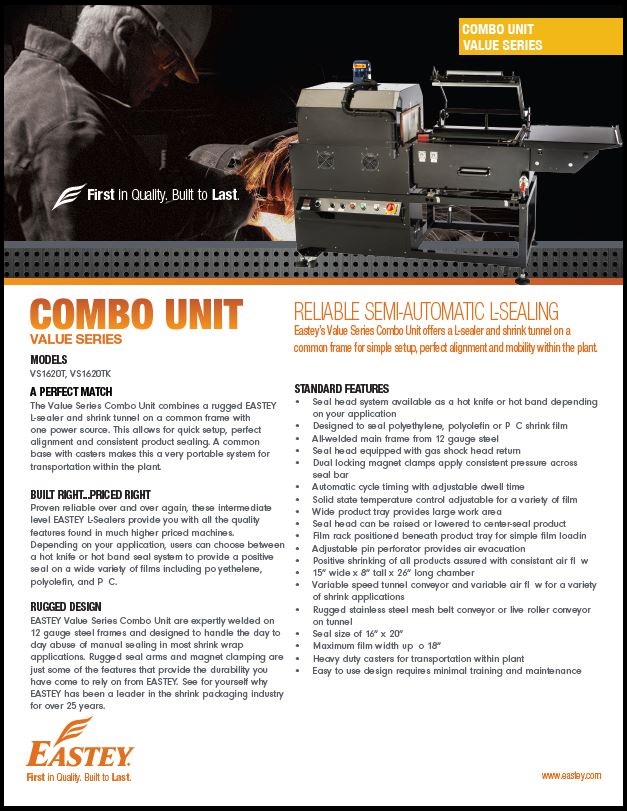

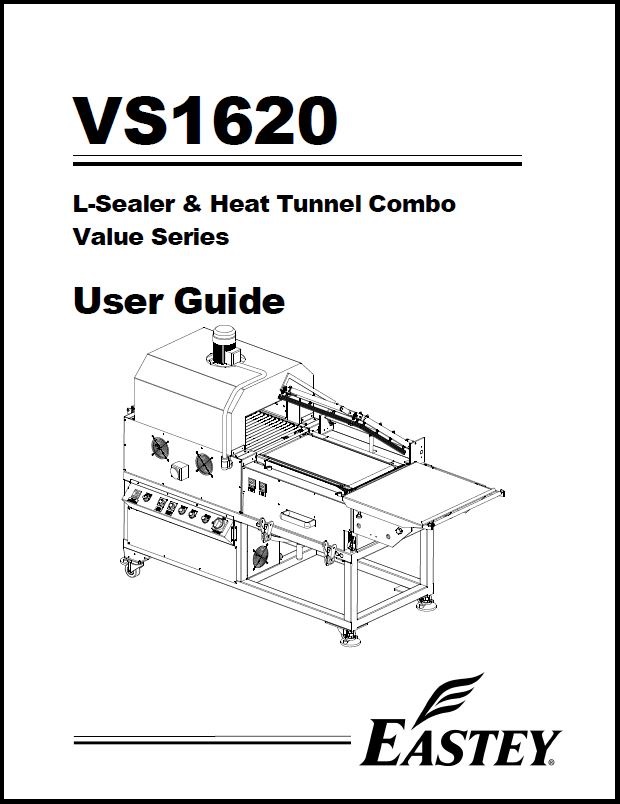

 Technical Sheet  User Guide
