Habasit AT-200M Belt Skiver With 120V Motor 200mm

Part Number: AT-200M

Habasit's AT-200M is a belt skiving tool for Thermofix belt joining.

Checkmark Icon

Skive belts up to 200mm wide x 7mm thick

Checkmark Icon

Adjustable table has 6 tilt options for varying belt thickness and skive length

Checkmark Icon

Equipped with motor driven sanding cylinder and handwheel feed

$4,200.00 /EACH
List price: $4,200.00 /EACH
    • EACH
  • Availability: Available to Order

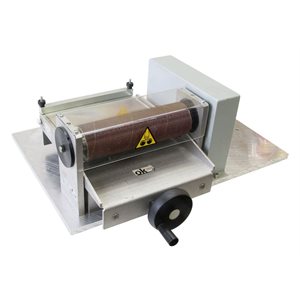

The AT-200M is a skiving device for Habasit belts and tapes up to 200 mm wide and 7 mm thick. The belt is clamped onto a steel table, which can be tilted in six steps and fed under a grinding drum on precise guides. The unit is driven by a high-torque motor for handling thick belting and the table feed is controlled by a hand wheel. The AT-200 is ideal for preparing belts and tapes in small to medium series.

Specifications

Technical Data
Belt Joint Type: Thermofix
Belt/Tape Max Width: 200mm (8.0 in)
Belt/Tape Max Thickness: 7mm (0.28 in)
Weight: 29.5 kg (64 lbs)
Dimensions (mm): 385 x 405 x 185mm
Dimensions (in.): 15.16" x 15.94" x 7.28"
Power: 115V, 1 Ph, 60Hz
