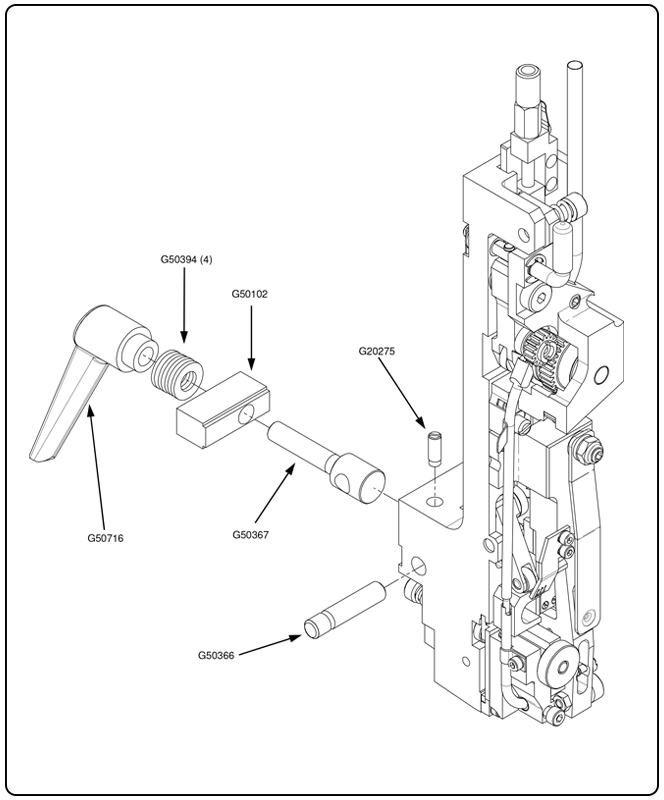

Head Mounting

Click part numbers in the diagram for product pages

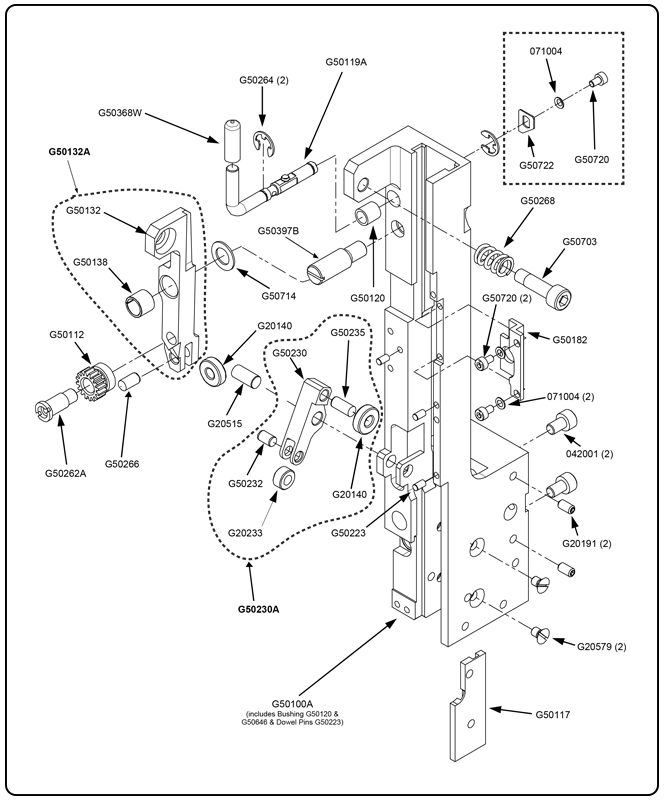

Bonnet - Sub-Assembly #1 (Figure 1)

Click part numbers in the diagram for product pages

Bonnet - Sub-Assembly #1 (Figure 2)

Click part numbers in the diagram for product pages

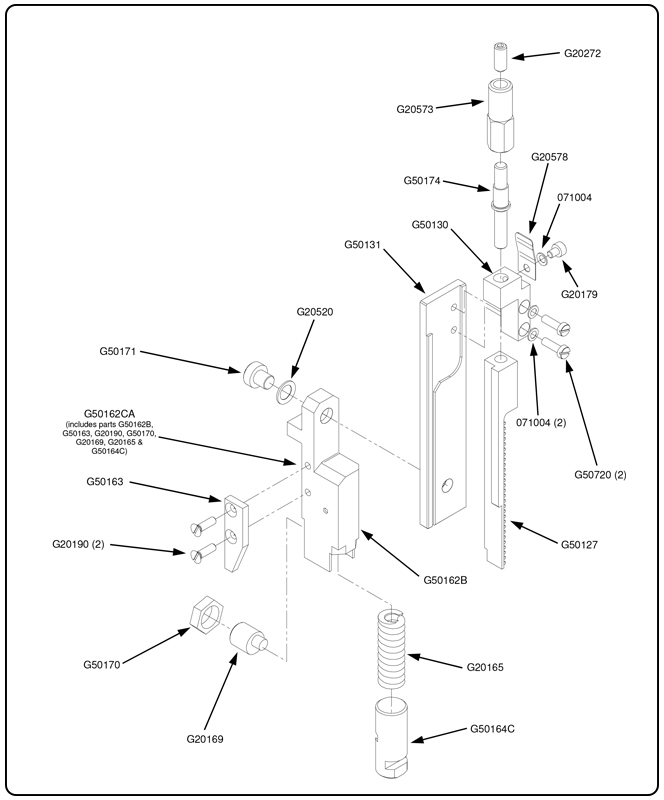

Driver and Feed Slide Assemblies

Click part numbers in the diagram for product pages

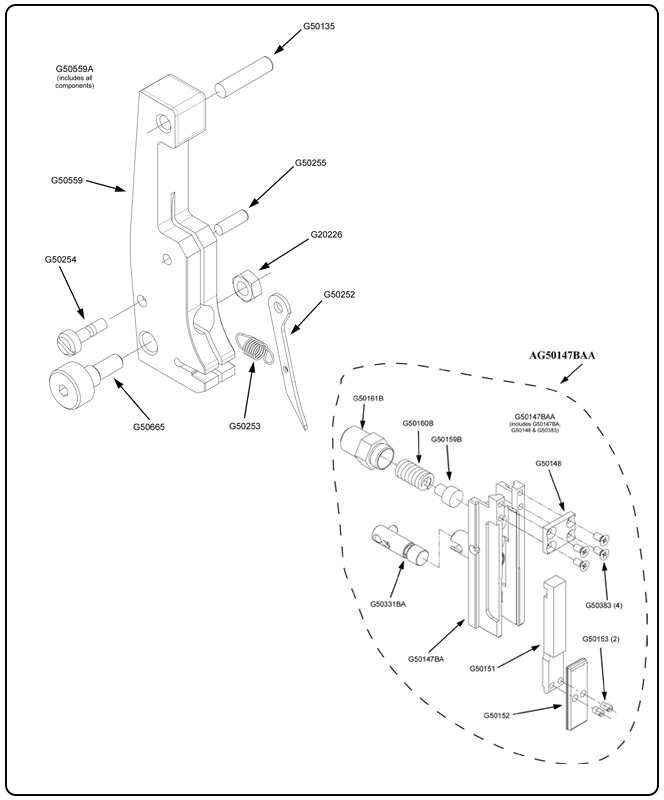

Wire Holder Assembly / Driver and Bender Bars

Click part numbers in the diagram for product pages

Clincher Plate Assembly / Wire Guide Bracket and Spring

Click part numbers in the diagram for product pages

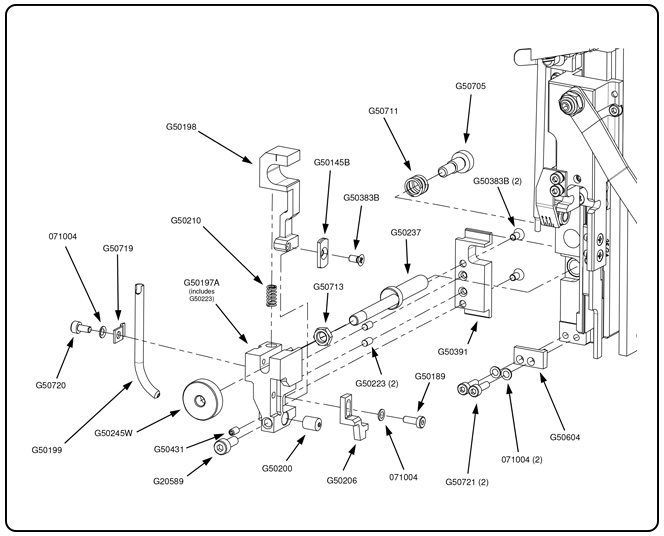

Cutter Box Assembly

Click part numbers in the diagram for product pages
