- >G8 Parts Breakdown

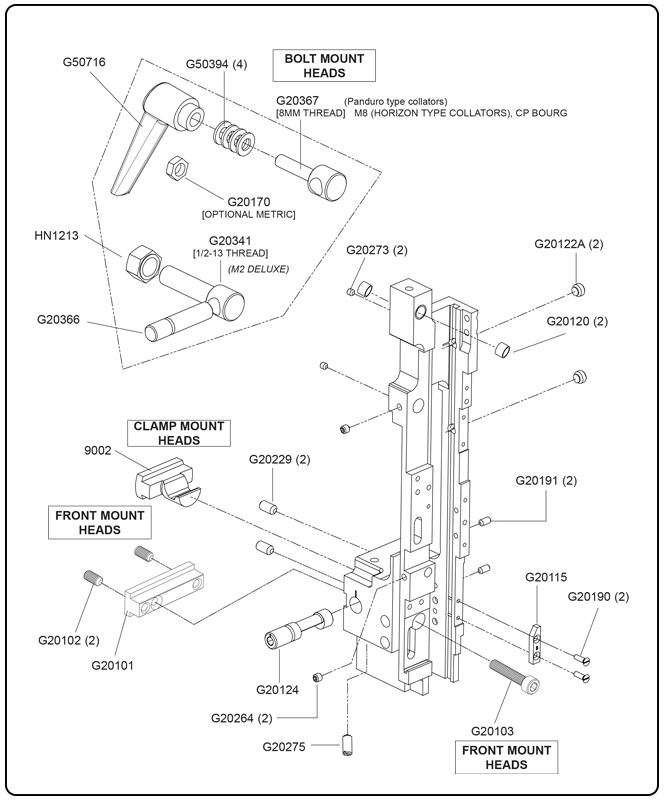

Bonnet Sub-Assembly (Figure 1)
Click part numbers in the diagram for product pages

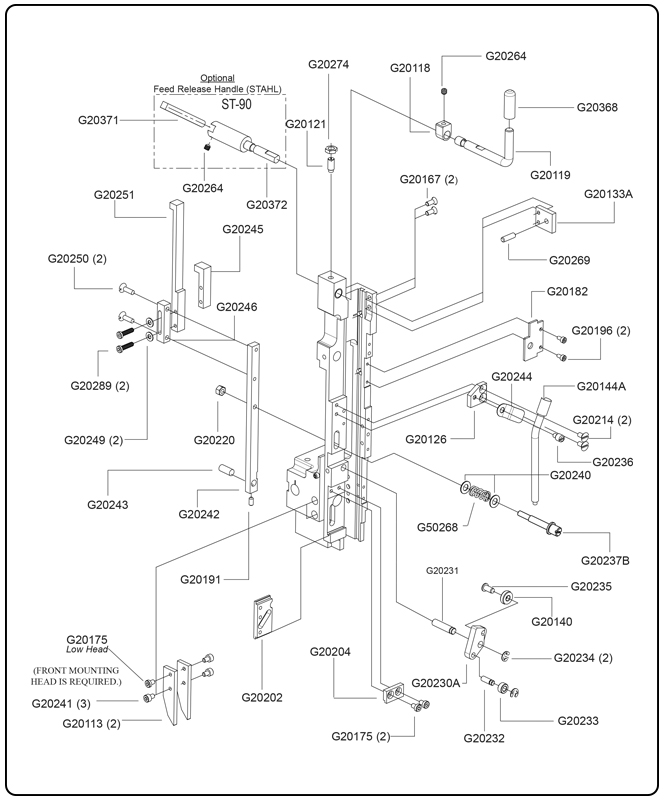

Bonnet Sub-Assembly (Figure 2)
Click part numbers in the diagram for product pages

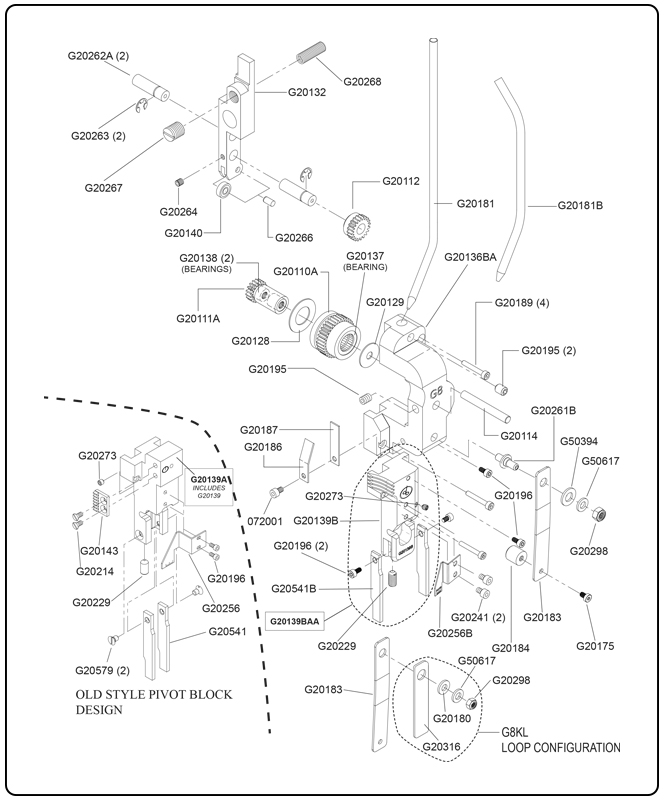

Feed Lever and Feed Gear Assemblies
Click part numbers in the diagram for product pages

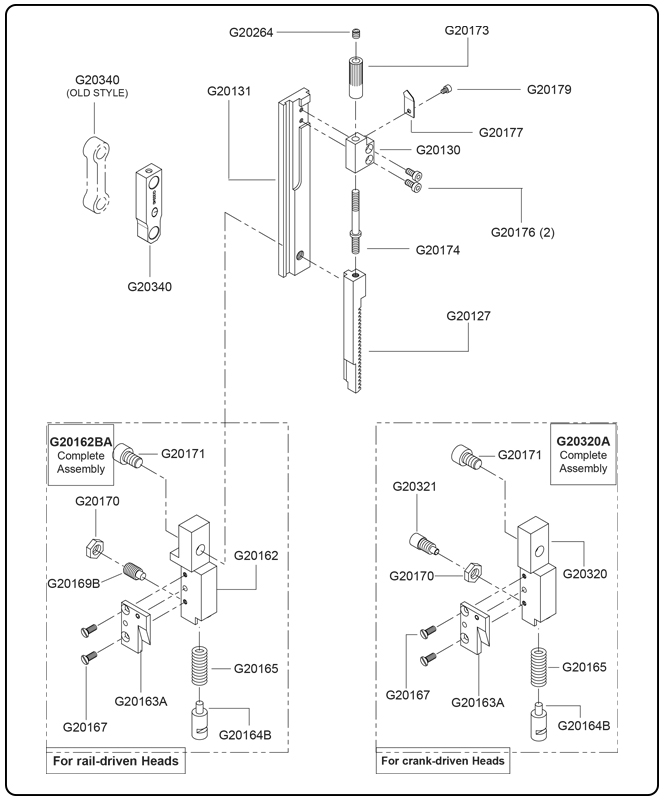

Driving and Feed Slide Assemblies
Click part numbers in the diagram for product pages

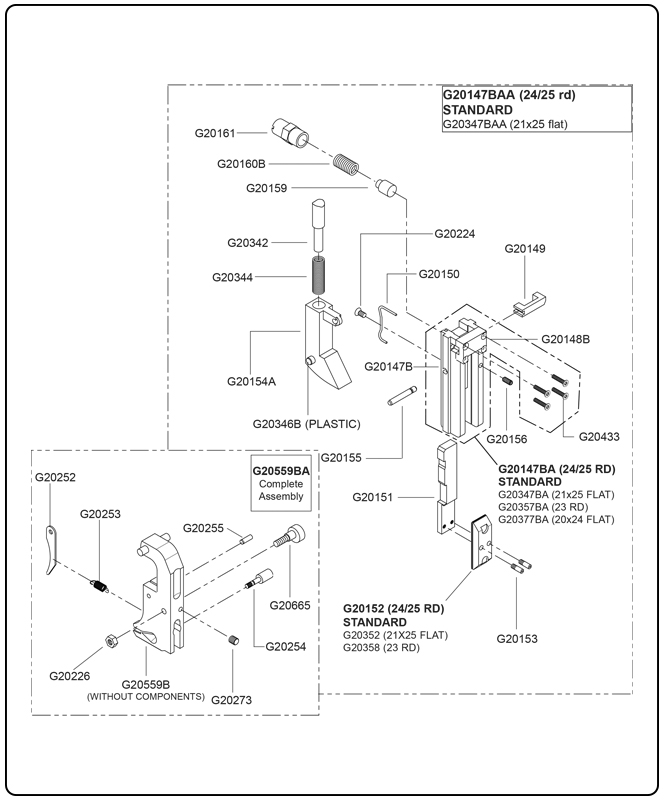

Bender Bar and Wire Holder Assemblies
Click part numbers in the diagram for product pages

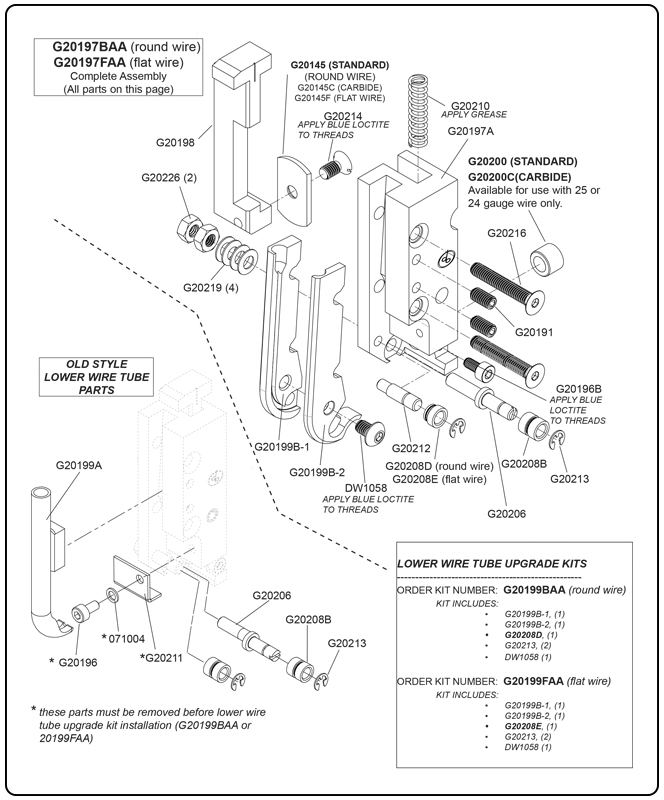

Cutter Box Assembly
Click part numbers in the diagram for product pages

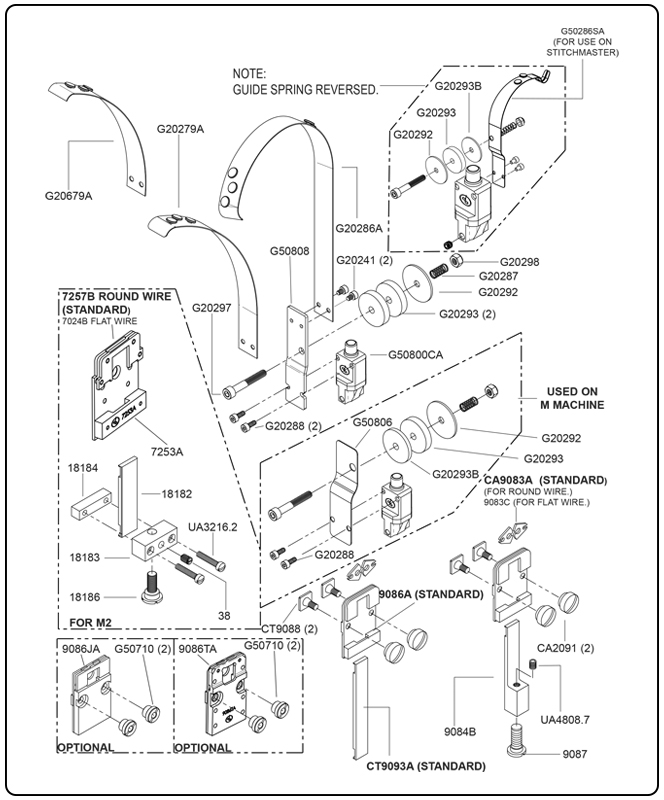

Wire Guide Bracket, Spring and Clincher Plate
Click part numbers in the diagram for product pages

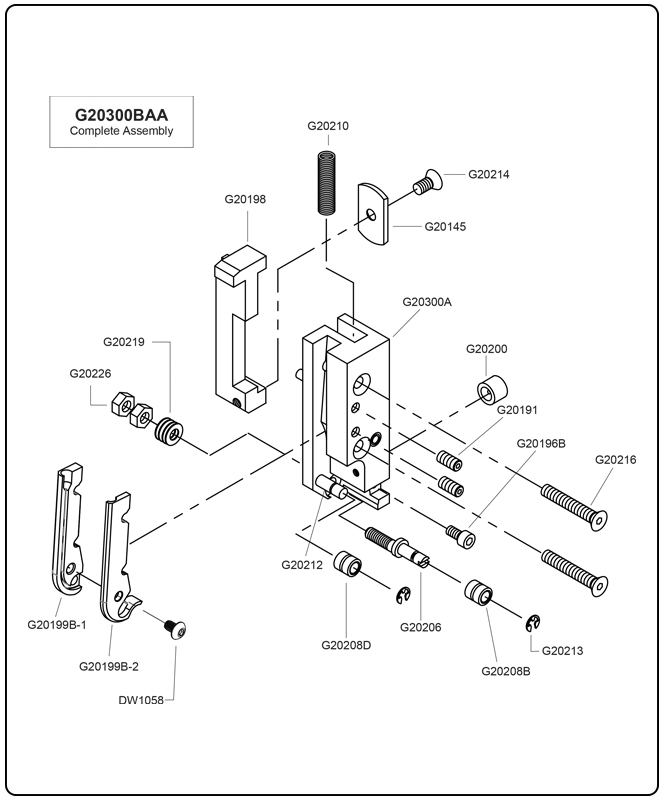

Loop Stitch Kit (Figure 1)
Click part numbers in the diagram for product pages

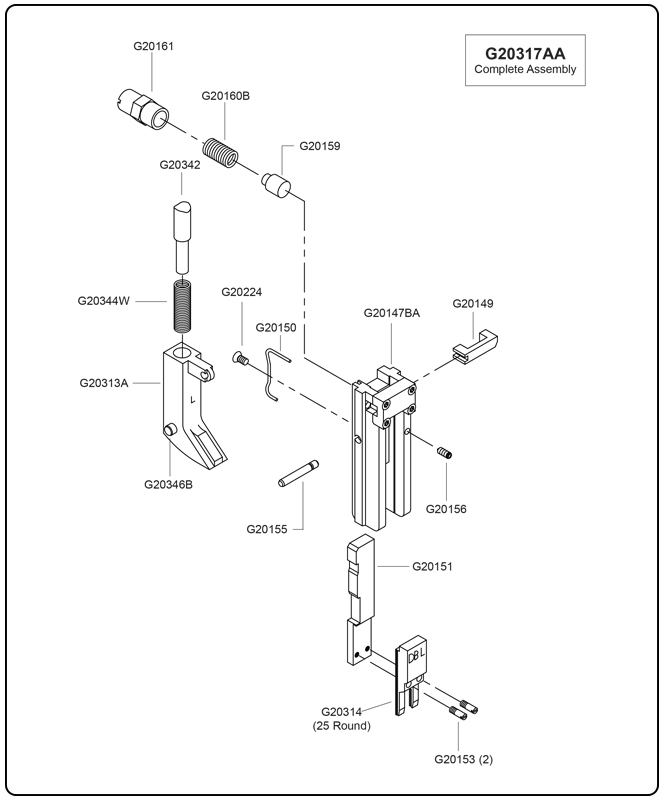

Loop Stitch Kit (Figure 2)
Click part numbers in the diagram for product pages

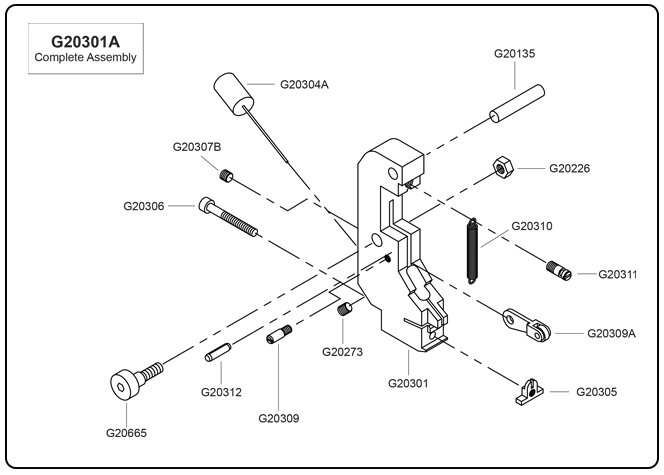

Wire Holder Assembly, Loop
Click part numbers in the diagram for product pages
