Hand Fine Spur Gear 55T (206273)

Hand Fine Spur Gear (Polar # 206273)

Machines: Most Polar EL and Polar CE paper cutters.
Size: It measures 3-3/16" in diameter over the teeth. Its overall length is approximately 1-3/32" wide and about 19/32" wide across the face of the teeth.

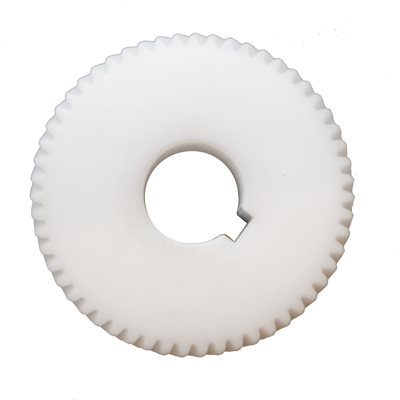

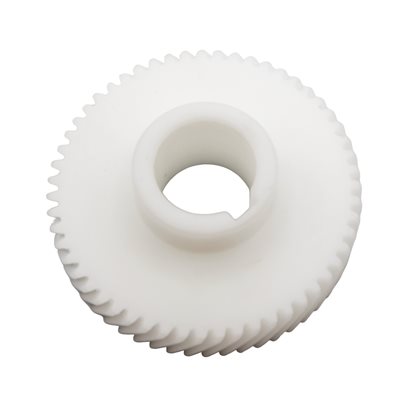

This 55 tooth helical spur gear is used in the hand fine adjustment mechanism. It fits on the 25mm diameter shaft and is machined from delrin. This gear mates with our pinion gear G325.
