Hohner Stitching Head, M55/L 8mm Loop
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Hohner

Hohner Stitching Head, M55/L 8mm Loop

Part Number: 0545088

The Hohner M55/L is a loop stitch head designed for Muller, Osako & Purlux machines. The stitcher head will replace original Muller head models HK75, HK55 and HK45. It is operator friendly, allowing for wire length and thickness adjustments in seconds.

Includes Stitcher Head, Clincher Assembly, Wire Guide, Centering Device and Tool Kit.

$5,896.80 /EACH
List price: $5,896.80 /EACH
    • EACH
  • Availability: Available to Order

Specifications

 Technical Data
Max Capacity: 0.12" (3mm)
Crown Width: 8mm
Wire Sizes: 24-26
Minimum Center-to-Center: 2.36" (60mm)
Weight:  5 lbs.
Machines: 221, 231, 235, Fox, 300, 321, 331, 335, 380, 390, Bravo T, Minuteman (Before 2004)
Muller* Equivalents: HK45, HK75, HK75V
Clincher Box Height: 2"



Documents

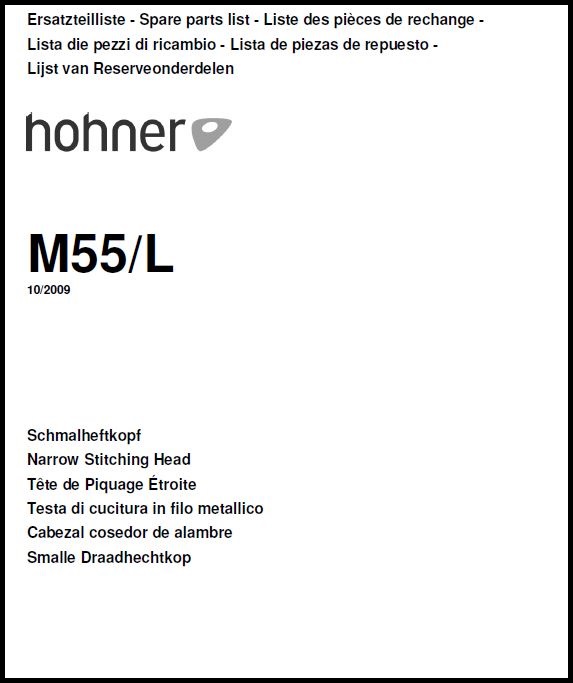

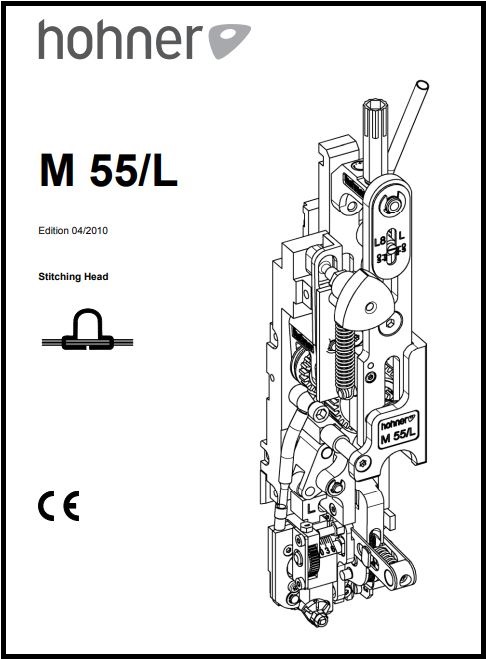

Parts Manual Operation Manual
