- Takk Model 3700SC XR2 DC Controller 120V
Takk Model 3700SC XR2 DC Controller 120V
Part Number: 3000XRS
The distinctive adjustability features of the Model 3700SC Power Controller allow users to customize frequency, voltage, and polarity outputs, ensuring precise ionization performance tailored to meet any static challenge. Encased in a high-strength body, the controller is equipped with features such as an operation error alarm indicator, a rocker on/off switch, an illuminated ion pulse rate display, and lockable setting key-locks.
Operable from a remote location via the integrated DIN connection, the Model 3700SC Controller supports input voltages of 115 VAC at 50/60 Hz or 24 Volts DC, offering variable shockless DC current output up to 14 kV.
Used to supply power to and control Takk's IonStorm XR2 Static Bars.
-
Contact us for pricing
- Availability: Available to Order
Specifications
| Technical Data | |
| Frequency: | Slow for long distance (3 ft.), fast for shorter distance (1ft.) |
| Polarity Balance: | If charge varies, set a balance output. If static is constant, balance can be adjusted 80:20 in each polarity (positive or negative) |
| Voltage: | Variable from 0-14 kV. Set full power (14kV) except for sensitive electronic applications |
| Input Voltage: | Standard 115 V 50/60 Hz or standard 24V DC |
| Amperage: | 35-volt amps starting load; 7-volt amps running |
| Alarm Indicator Light: | Flashes to indicate warning and service requirements |
| Connections: | Multiple bars can be powered by the controller with junction boxes |
| Size: | 8.75" Width x 7" Length x 2.75" Depth |
Documents
 |

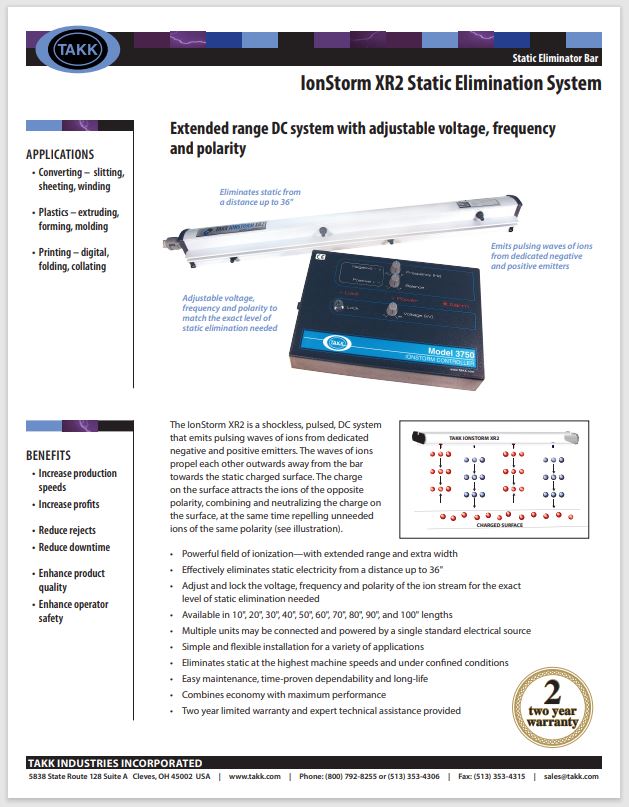

| Data Sheet |
Accessories
Static Bars: 300-DC-010S
Junction Box: 3003S (2 way) or 3007S (4 way)
Static Locator: SM-5740
