Muller Martini

Kit - Repair DB75V Head, .6mm

Part Number: DB75VRPK-.6MM

$660.00 /EACH
List price: $660.00 /EACH
    • EACH
  • Availability: Available to Order

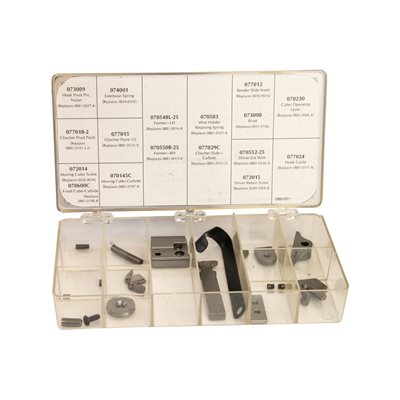

Contents

Part Number Description Qty
070145C Moving Cutter - Carbide 2
070230 Cutter Operating Lever 1
070548L-25 Former LH 0.6 Wire 2
070550R-25 Former RH 0.6 Wire 1
070552-25 Driver 0.6 Wire 2
070583 Wire Holder Retaining Spring 1
070600C Fixed Cutter - Carbide
 1
072014 Moving Cutter Screw 1
072015 Driver Retaining Screw, Nylon 2
073008 Rivet 1
073009 Hook Pivot Pin, Nylon 2
074001 Wire Holder Spring 1
077012 Bender Slide Insert 1
077015 Clincher Point 1/2 2
077018-2 Clincher Pivot Point Pin 2
077024 Hook Guide, DB75V
 1
077029C Clincher Slide Assembly - Carbide 1
