Latch Pin Assembly For False Clamp (232333, 201558, 205687, 201091)

Polar Latch Pin Assembly (Polar #'s ZA3.232333 and 232333)

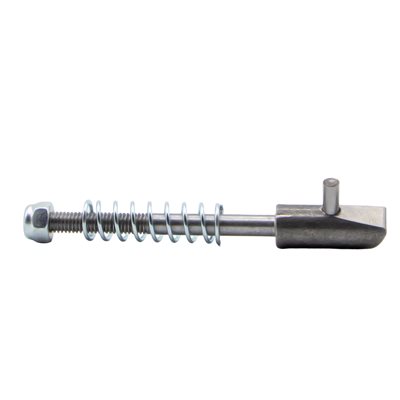

Included: Latch pin (232333), the perpendicular dowel pin (201558), the spring (205687), and a self-locking hex nut (201091)


Machines: Polar 92 EMC, Polar 92 S, Polar 92 E, Polar 92 ED, Polar 92 X, Polar 92 XT, Polar 115 EMC (after machine serial number 5231560), Polar 115 S, Polar 115 E, Polar 115 ED, and the Polar 137 (all models), Polar 155 EMC and 155 EMC MON (after serial number 5221001), Polar 155 E, Polar 155 ED, Polar 176 EMC and Polar 176 EMC MON, Polar 176 E, and Polar 176 ED.It also fits all of the Polar X, XT, and XS models, including the 78, 92, 115, 137, and 155 models.


Size: Overall 60mm long (2 3/8" long). The main latch area is 8mm in diameter and 20 mm long

Also see our P326 for the earlier (pre 1982) version of this pin.  Also see our P210 for the black pusher that releases this latch pin.
