Lawson Drill Head, Left Hand, 3" Drill Capacity
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Lawson

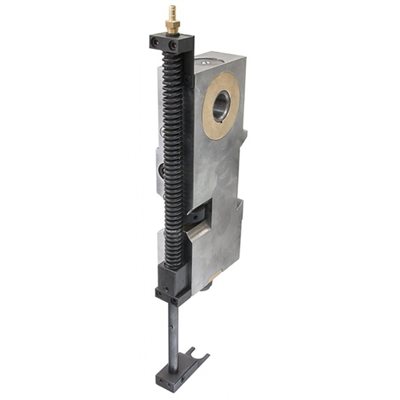

Lawson Drill Head, Left Hand, 3" Drill Capacity

Part Number: DHLAW-LH

Lawson Left-Hand Replacement Drill Head

Checkmark Icon

Compatible with all Dexter-Lawson models including Classic, M, A, and B series

Checkmark Icon

Handles drill diameter sizes from 1/8" to 1/2" diameter

Checkmark Icon

Hex nut drill bit mounting style

Checkmark Icon

Spindle orientation to the right side of the drill head for minimum center-to-center drilling

$1,239.99 /EACH
List price: $1,239.99 /EACH
    • EACH
  • Availability: In stock

Lawson Drill Head Breakdown

Click parts in the diagram for product pages

Flat Head ScrewFlat Head ScrewFlat Head ScrewThrust PlateThrust WasherBevel GearBushingPressure Foot RodPressure Foot SpringSocket Head ScrewPressure Foot BlockThumb ScrewPressure Foot StopSocket Head ScrewPressure Foot BlockPressure Foot with Air HoleFlat Head ScrewTop PlugFlat Head ScrewRight Hand HousingSocket Set ScrewSet ScrewBrass GibGib ScrewAdjusting KnobSocket Set ScrewSocket Set ScrewGrease WickAluminum PlugPinion GearThrust WasherTop Bronze BushingLocknutLock WasherThrust BearingSpringBallAdjusting SleeveThrust WasherSpindleLower BushingFlat Head ScrewFlat Head ScrewCollet AssemblySpring ClipPressure Foot RodPressure Foot SpringSocket Head Cap ScrewUpper BlockExtension PlateFlat Head Socket ScrewPressure Foot StopThumb ScrewPressure Foot BlockSocket Head ScrewPressure Foot with Air HoleSocket Set ScrewSocket Set Screw



You May Also Be Interested In

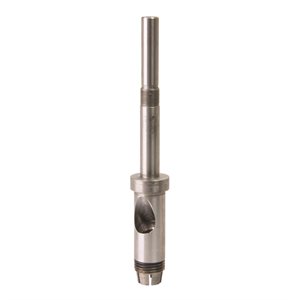

Spindle, Hex Nut Style, Lawson (B10124)
