M30 Stitcher
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Deluxe

M30 Stitcher

Part Number: M30-AST-1-1/4

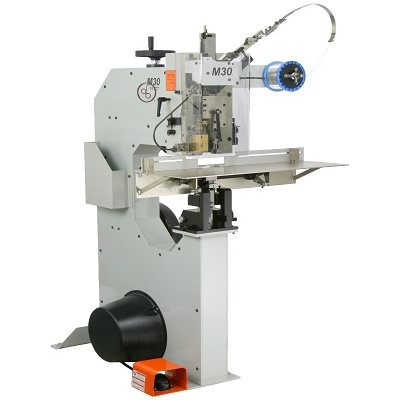

The most versatile Stitcher Machine offered by Deluxe Stitcher, the M30 satisfies the requirements of any size Bindery House. Perfect for flat, saddle and corner-stitched jobs, the M30 can even stab stitch.
$13,070.00 /EACH
List price: $13,070.00 /EACH
    • EACH
  • Availability: Available to Order

Specifications

Technical Data
Model: M30 Stitcher
Capacity: 2 sheets up to 1-1/4"
Crown Size: 1/2"
Wire Sizes: 20-25, 18x20, 19x21.5, 20x24, 21x25 gauge
Throat Depth: 20"
Clinch: Flat Stitching and Saddle Stitching
Electrical: 115 VAC, 60 Hz
Dimensions: 66.5" H x 30" W x 30" L
Shipping Weight: 670 lbs



Documents

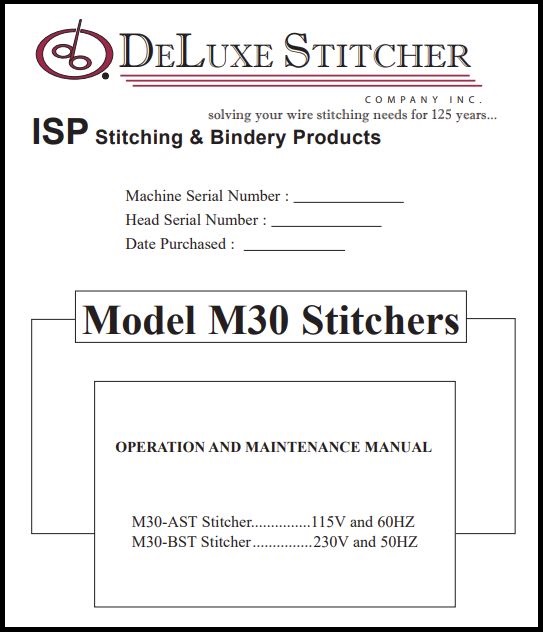

Operation Manual

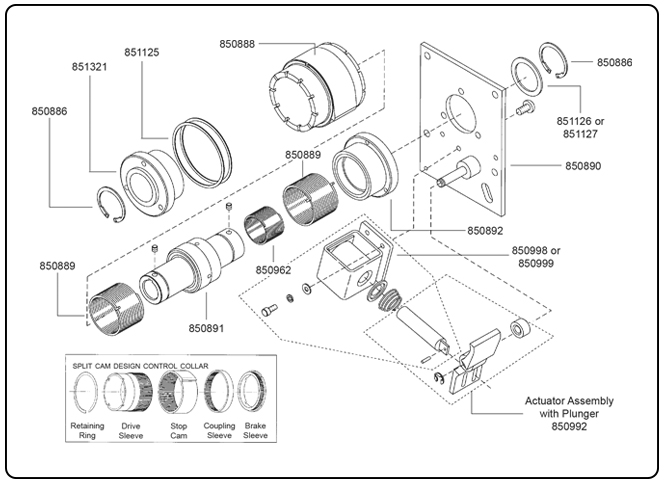

Clutch Brake

Click part numbers in the diagram for product pages

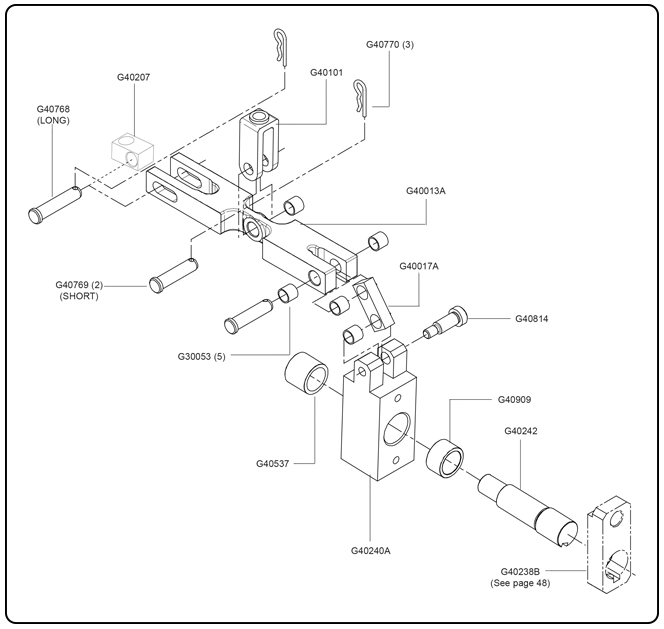

Internal Assemblies - Compression Adjustment Linkage

Click part numbers in the diagram for product pages

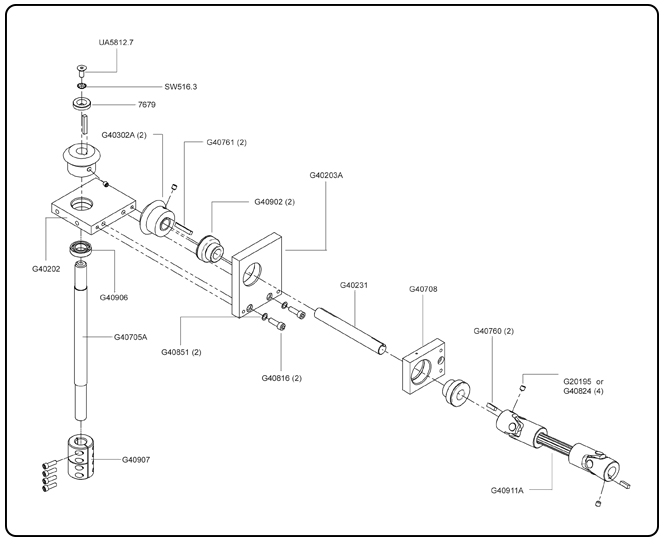

Internal Assemblies - Upper Driver Components

Click part numbers in the diagram for product pages



Internal Assemblies - Lower Drive Gear & Bearing Mounts

Click part numbers in the diagram for product pages

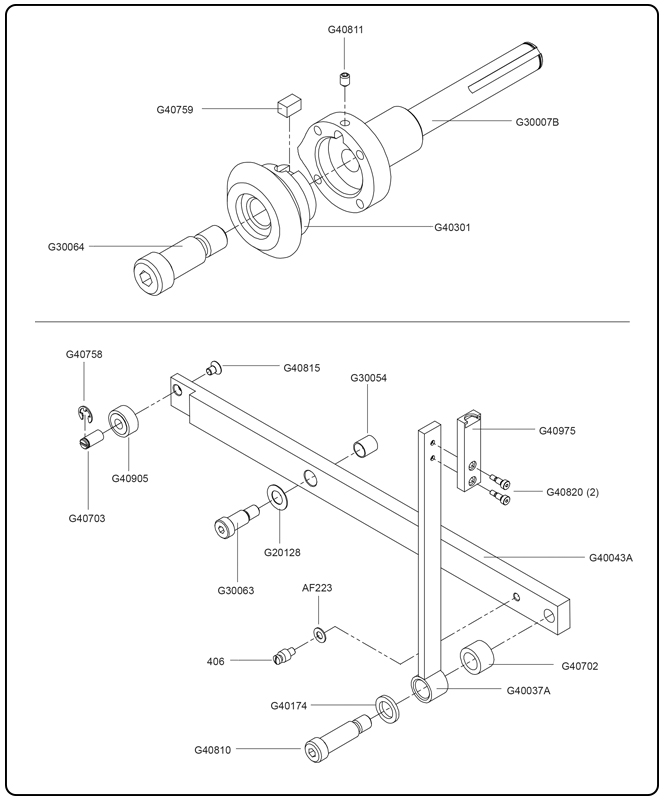

Internal Assemblies - Clincher Cam & Clincher Lever Assemblies

Click part number in the diagram for product pages

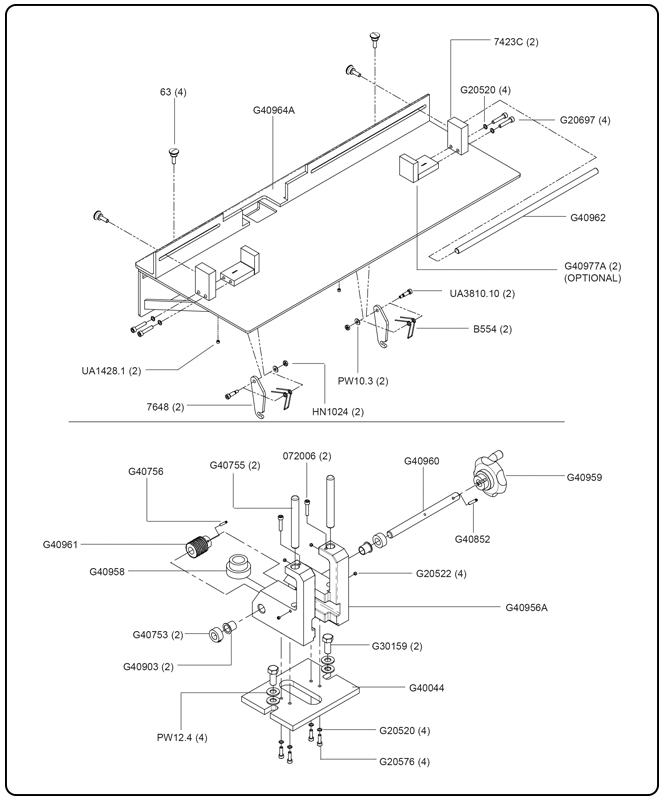

Table and Clincher Assemblies - Clincher Mount & Work Table

Click part numbers in the diagram for product pages

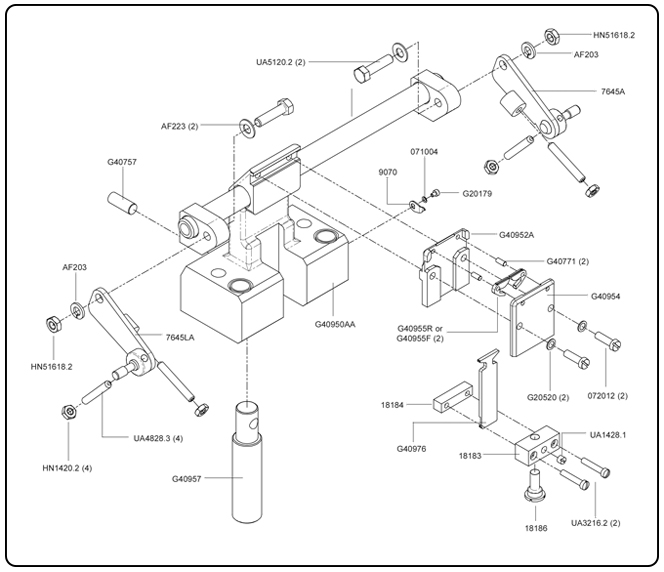

Table and Clincher Assemblies - Clincher Pad

Click part numbers in the diagram for product pages



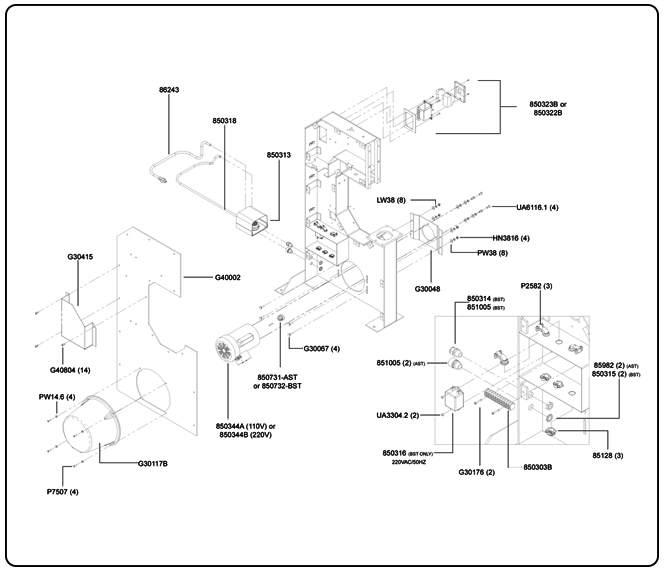

Motor Assemblies

Click part numbers in the diagram for product pages



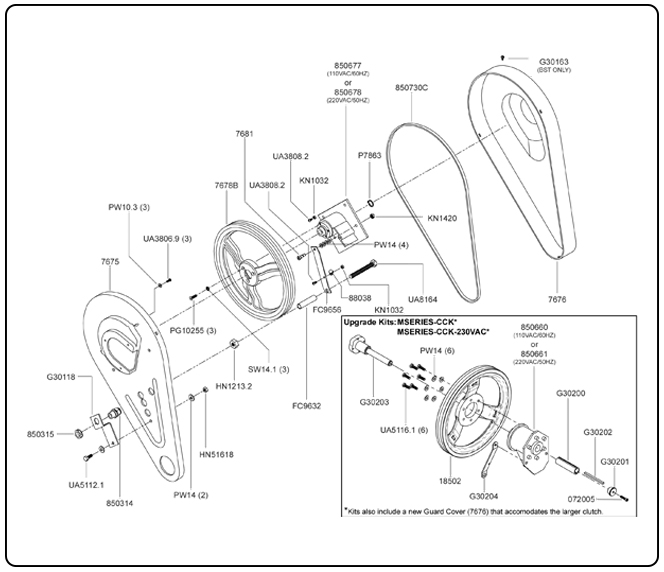

 Guard Assembly

Click part numbers in the diagram for product pages
