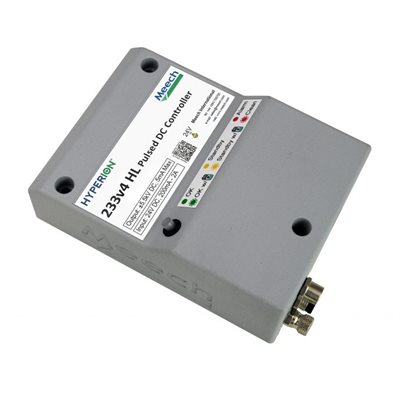

Meech 233v4 Hyperion Pulsed DC Controller
Double-tap and hold to zoom.
Mouse over the image to zoom.

Meech 233v4 Hyperion Pulsed DC Controller

Part Number: 233V4

The Hyperion 233v4 Pulsed DC Controller is a compact and powerful device that can directly power two Meech pulsed DC ionizers. If more ionizers are needed, they can be easily connected using splitters. The 233v4 is versatile and flexible, making it suitable for various industries. Simply plug the controller into a standard outlet, insert the the nozzle connections into the controller, and connect house air with the inlet end of the connected nozzles. You can now direct ionized air to any static problem area of the machine.

One notable feature of the 233v4 is Meech’s Ion Current Monitoring technology. Integrated output signals notify operators when it's time to clean the attached ionizer for optimal performance.

Power Cord not included. See 900IPS-SM2MS.

$789.00 /EACH
List price: $789.00 /EACH
    • EACH
  • Availability: Available to Order

Complete System:

-
233v4 Controller (x1)

- 261v2 Ionizing Nozzle (up to 2 per power supply; more with splitters)

900IPS Power Cable (x1)

Specifications

 Technical Information
Dual Output: Power 2 Ionizers (more with splitters)
Supply Voltage: 24V DC
Input Connection: 4 Pin M8 Connector
Output Voltage: 2-15kV Pulsed DC, adjustable w/ BarMaster
Output Current: 5mA Maximum
Electrical Consumptions: Max 625mA
Operating Environment: 32° - 131° F
Dimensions: 46 x 93 x 129mm
Weight: 650 grams (1.43 lbs)

Documents


 Data Sheet  Operating Manual

Accessories

Ionizing Nozzles: 261V2

Ionizing Output Control: 900IPS-BM

Splitters: 2WAY, 4WAY, 8WAY
