Meech 954v3 Shockless Ionizing Gun w/ 3m Cable

Part Number: 954V3

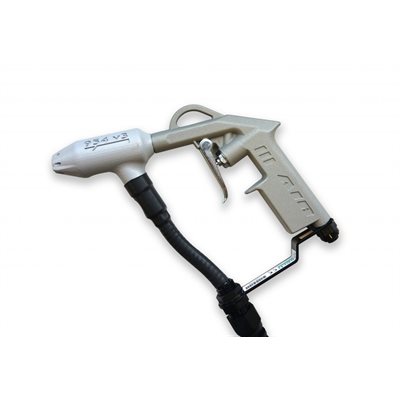

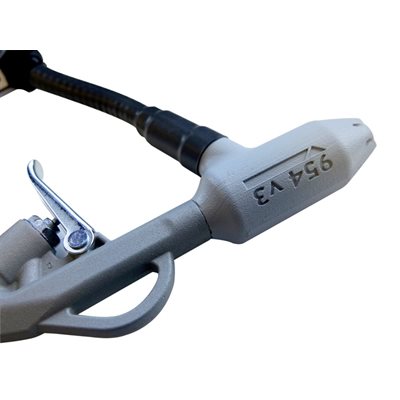

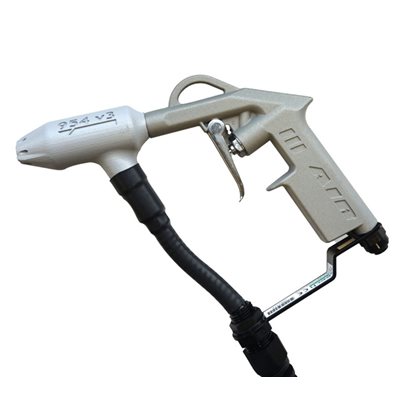

The Meech Model 954v3 is a handheld ionizing gun designed to neutralize static charges and remove dust in various industrial processes. Its titanium emitter ensures rapid ionization and quick decay speeds for effective contamination removal. The gun's trigger promotes compressed air efficiency, offering operational savings.

904 Power Supply Sold Separately.

$486.00 /EACH
List price: $486.00 /EACH
    • EACH
  • Availability: Available to Order

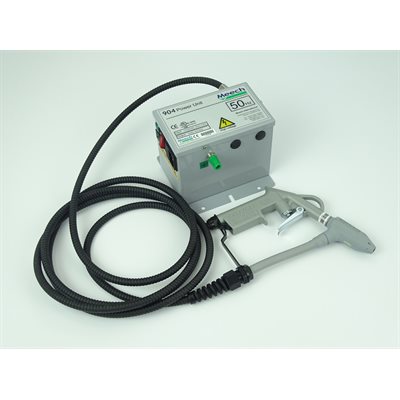

Complete System:

- 954v3 Ionizing Gun (up to 2 per power supply)

- 904 Power Supply (x1)

Specifications

 Technical Information
 Air Fitting (Inlet): 6mm Push Fit & 1/4" BSP
 Operating Voltage: 7 kV from 904 power unit
 Max Air Pressure: 100 psi (6.8 bar)
 Recommended Pressure: 50 psi (3.4 bar)
 Air Consumption: 13cfm @ 50psi (370 liters/min @ 3.5 bar)
 Max Temperature: 85°C (185°F)
 Construction: Plastic housing with metal piston grip
 Nozzle Diameter: 30mm
 Cable: 3m of H.T. cable in flexible conduit (longer lengths available)

Documents


Data Sheet
  Operating Manual



Accessories

Power Supply: 904

Static Locator: 983V2



Static Applications

Printing, Packaging, Converting, Plastics
