Meech 993R Static Generator Bar 100mm (4.00" overall) w/ Compact Plug
Double-tap and hold to zoom.
Mouse over the image to zoom.

Meech 993R Static Generator Bar 100mm (4.00" overall) w/ Compact Plug

Part Number: 993R-CP-0100

The Model 993R (w/ compact plug connector) is a high-efficiency Static Generator Bar that is compatible with the Meech 30kV DC power supply. This model is equipped with resistively coupled emitter pins, which significantly reduce the risk of shock and ensure a stable and controlled power output. The emitter pins produce positively or negatively charged ions depending on the polarity of the DC power supply. Static generator bars are excellent for industrial applications where static bonding of non-conductive materials is required. Industries include printing, packaging, converting, and more. These generator bars are also available in 50kV versions.

$606.00 /EACH
List price: $606.00 /EACH
    • EACH
  • Availability: Available to Order

Complete System:

- 993R Static Generator Bar (up to 2 per power supply)

IonCharge30 Power Supply (x1)

900IPS Power Cable (48W) (x1)

Specifications

 Technical Data
Operating Voltage: Up to 30kV
Cable: 2 meters shielded in flexible conduit (longer lengths available)
Construction: PVC extrusion, titanium emitter pins
Mounting: Two M10 x 50mm nylon studs
Max Temperature: 60º C (140º F)
Operating Current: 0.5mA max
Polarity: Either positive or negative
Dimensions: 22mm x 44mm x Length

Documents


Data Sheet
Operating Manual
 Overview

You May Also Be Interested In

Meech 995 Pinning Head - 8 Pins, 2 Rows, 107mm Length
  • $793.00 /EACH
  • List price $793.00 /EACH
  • EACH
  • Availability: Available to Order

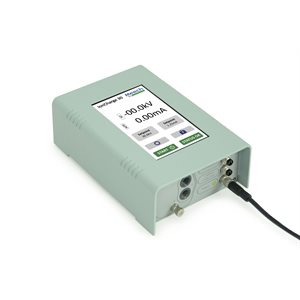

Meech IonCharge30 Static Generator 30kv Negative (-)
  • $2,181.00 /EACH
  • List price $2,181.00 /EACH
  • EACH
  • Availability: Available to Order
Meech 993R Static Generator Bar 100mm (4.00" overall)
  • $606.00 /EACH
  • List price $606.00 /EACH
  • EACH
  • Availability: Available to Order

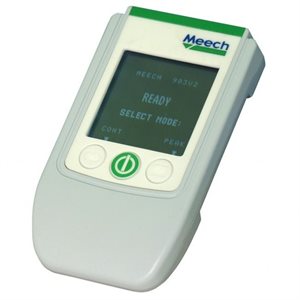

Meech Static Locator (-200 to +200KV)
