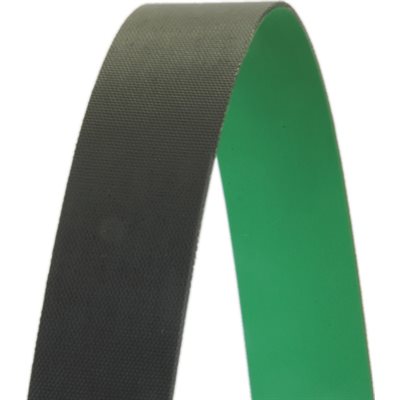

MVT-6P Machine Tape 1"
Part Number: MVT-6P-1
Main Industry Segments: Folding, Paper converting, Paper manufacturing and processing, Paper printing and finishing
Applications: Folder belt, Paper handling belt, Processing belt
Special Features: Abrasion resistant, Adesive-free joint, Constant grip and release property, Dimensionally stable, Non-marking
$3.77 /PER FOOT
List price: $3.77 /PER FOOT
List price: $3.77 /PER FOOT
- Belting Thickness (mm) : 1.45mm
- Belting Joining Method : Quickmelt / Flexproof
- Availability: In stock
Specifications
| Product Construction | |
|---|---|
| Conveying Side Material: | Polyurethane cross-linked (PUR) |
| Conveying Side Surface: | Impregnated fabric |
| Conveying Size Property: | Non-adhesive |
| Conveying Side Color: | Black |
| Traction Layer Material: | Polyamide (PA) fabric / Thermoplastic polyurethane (TPU) foil |
| Number of Fabrics: | 2 |
| Pulley Side Material: | Acrylonitrile-Butadiene-Rubber (NBR) |
| Pulley Side Surface | Fine textile structure |
| Pulley Side Property: | Adhesive |
| Pulley Side Color | Green |
| Product Data | |
|---|---|
| Joining Method: | Quickmelt / Flexproof |
| Belt Thickness: | 1.45mm (0.06 in) |
| Anti-Statically Equipped: | Yes |
| Elastic: | No |
| Min Operating Temp: | -20° C (-4° F) |
| Max Operating Temp: | 60° C (140° F) |
| Min Pulley Diameter: | 25mm (.98 in) |
Documents
Joining Tools
Cutters: AQ-40, AF102, AF-61/6X30, or AF-100/US-80
Heaters: PQ-59, PF-62, PF-100S, or PF-101
Cooling Tongs: CD-60, or CD-61
Guide Rails: GR1
