Drill Bit Retainer Assembly, Baum (S262-038-BG-01)
Double-tap and hold to zoom.
Mouse over the image to zoom.
Click to Enlarge
Nygren Dahly

Drill Bit Retainer Assembly, Baum (S262-038-BG-01)

Part Number: RC-73

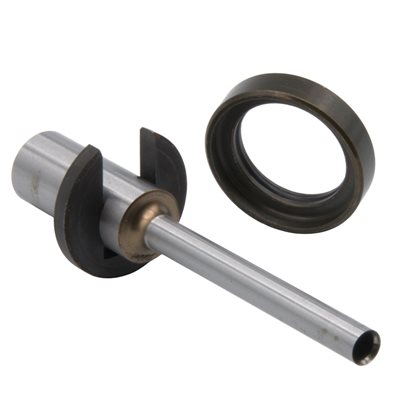

Baum drill retainer assembly used with drill bits in Baum & Nygren Dahly Drill Heads.

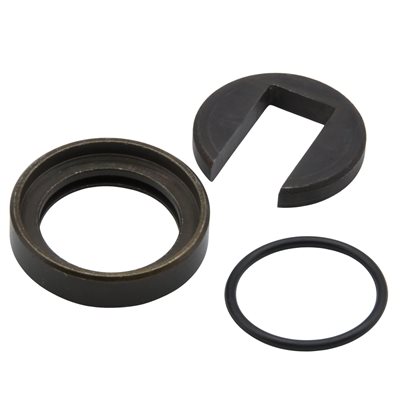

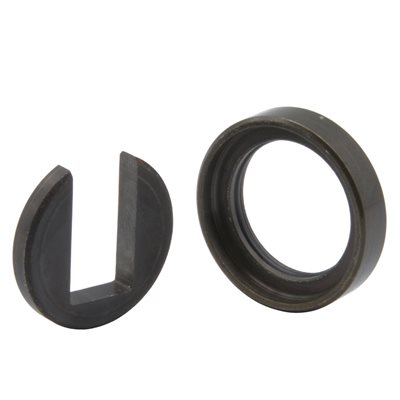

Includes Clip, Retainer Ring, and O-Ring

Outer diameter of retainer ring measures 1-1/4"

Equivalent to mfg. #'s S262-038-BG-01 and N-34B

$35.70 /EACH
List price: $35.70 /EACH
    • EACH
  • Availability: In stock

Nygren Dahly Drill Head Breakdown

Click parts in the diagram for product pages

Hex NutWasherSpindle Thrust WasherDrill Spindle SleeveSpindle Thrust BearingSpacer CollarHelical Spindle GearDrill SpindleUpper BushingClamp Screw Lever AssyDrill Spindle Sleeve CapDrill Frame Clamp screwDrill Frame CapDrill Spindle Clamp ThreadedSet Screw Set, Long & ShortFlat Head ScrewDrill Gear CapGear KeyHelical Drive GearDrive Gear WasherGrease FittingSide Plate ScrewsSide PlateLower BushingDrill HousingStripper FootCap ScrewSide PlateSide Plate ScrewStripper SpringStripper RodStripper RodFront Plate w/ Screws & WashersPan Head ScrewPan Head Screw
