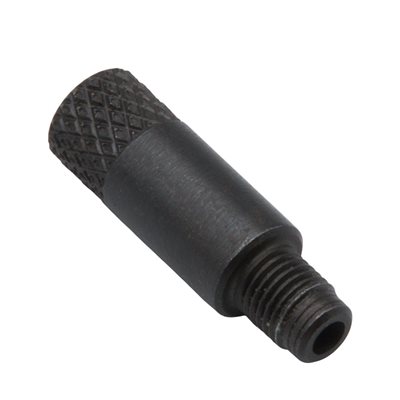

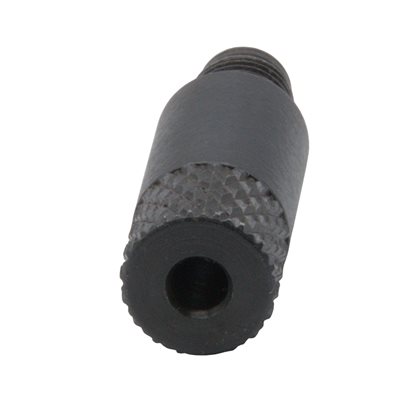

Drill Extension 1/8" Drills, Nygren Dahly

Part Number: E-1

Drill Bit extension for Baum & Nygren Dahly Drill Heads.

Compatible with 1/8" diameter drill bits

1.43" Height x 0.437" OD x 0.30" thread width

Equivalent to mfg. # N-37

$8.70 /EACH
List price: $8.70 /EACH
    • EACH
  • Availability: In stock

Nygren Dahly Drill Head Breakdown

Click parts in the diagram for product pages

Hex NutWasherSpindle Thrust WasherDrill Spindle SleeveSpindle Thrust BearingSpacer CollarHelical Spindle GearDrill SpindleUpper BushingClamp Screw Lever AssyDrill Spindle Sleeve CapDrill Frame Clamp screwDrill Frame CapDrill Spindle Clamp ThreadedSet Screw Set, Long & ShortFlat Head ScrewDrill Gear CapGear KeyHelical Drive GearDrive Gear WasherGrease FittingSide Plate ScrewsSide PlateLower BushingDrill HousingStripper FootCap ScrewSide PlateSide Plate ScrewStripper SpringStripper RodStripper RodFront Plate w/ Screws & WashersPan Head ScrewPan Head Screw
